| Brand Name: | TICO |
| Model Number: | STC-BMQ-M120 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Delivery Time: | 5~8 working days |
| Payment Terms: | T/T |

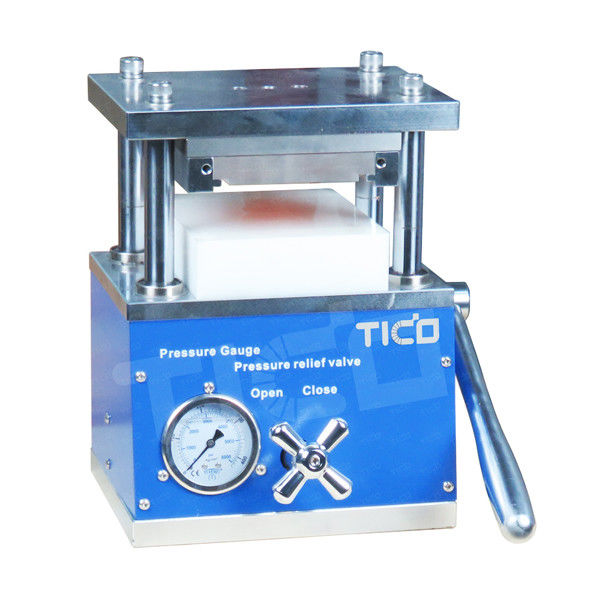

Compact Hydraulic Die Cutting Machine for Pouch Cell Electrode
Product Details
It is used for battery electrode die cutting for pouch cell cathode & anode. Compact size can be put inside glove box.
Key feature
• Small dimension, easy to operate, it can be put inside glove box.
• Embedded pressure gauge, can observe and control the press pressure accurately.
• Hydraulic driven, press pressure can reach to 8T, no vibration and liquid leakage.
• Exquisite appearance, simply to maintenance.
Technical parameter
| Brand name | TICO |
| Max cutting size | L120 * W 100 mm, other size is optional. |
| Accuracy | ±0.1 mm |
| Max pressure | 8T |
| Punching stroke | 35mm |
| Structural component material | High strength chrome steel, after environmental protection electroplating and spraying, the surface will never rust |
| Dimension | L223 * W170 * H325mm |
| Weight | 25kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
|
|
