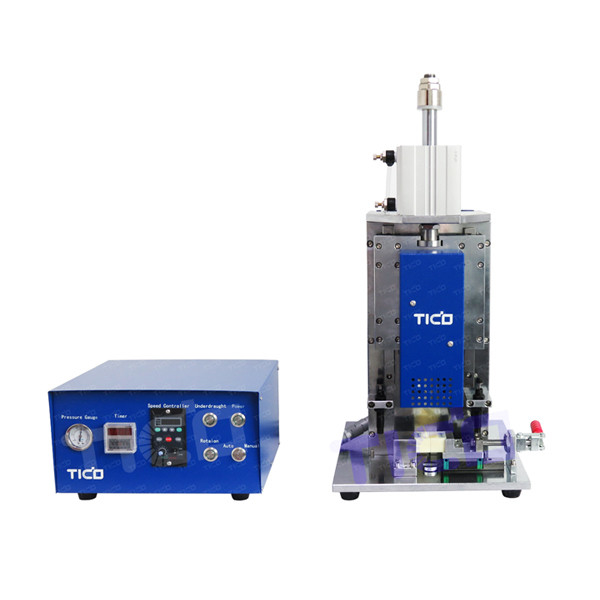

30mm Ox Horn Supercapacitor Sealing Machine 8T Adjustable

I'm Online Chat Now

30mm Ox Horn Supercapacitor Sealing Machine 8T Adjustable

30mm Ox Horn Supercapacitor Sealing Machine 8T Adjustable
30mm Ox Horn Supercapacitor Sealing Machine 8T Adjustable

Large Image :  30mm Ox Horn Supercapacitor Sealing Machine 8T Adjustable

Product Details:
Place of Origin: Shen Zhen
Brand Name: TICO
Model Number: STC-XFK20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden packing
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: 50 sets per month

30mm Ox Horn Supercapacitor Sealing Machine 8T Adjustable

Description
Product Name: Ox Horn Super-capacitor Sealing Machine Feature: Sealing Height Adjustable
Applicable Supercapacitor: Diameter < 30mm, Other Sizes Available Stroke: 30mm For Maximum
Riveting Pressure: 8 Ton Weight: 30kg
High Light:

Ox Supercapacitor Sealing Machine

,

30mm Supercapacitor Sealing Machine

,

adjustable Supercapacitor Sealing Machine

Ox-horn Supercapacitor Sealing Machine



Product introduction



It is used for small Ox-horn supercapacitor aluminum can automatic spinning pressing sealing machine.



Key Features



• Clamp the product tightly and stable without sharking, spinning sealing is even.

• Adopt high-precision machine tool to guide the feeding, high sealing precision and stable size.

• Sealing height is adjustable.



Technical parameter



 Brand name  TICO
 Suitable super capacitor size  Diameter < 30mm, customized size is available
 Max stroke  30mm
 Riveting height accuracy  ±20μm
 Riveting pressure  8T adjustable
 Riveting die lifetime  3000000 times
 Dimension  L230 * W230 * H400mm
 Weight  30kg



Warranty



1 year warranty with lifetime support. Man-made damage is not covered.



FAQ



1. Are you a manufacturer?



A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.



2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.



3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
