AC380V Super Capacitor Automatic Winding Machine 170rpm

I'm Online Chat Now

AC380V Super Capacitor Automatic Winding Machine 170rpm

AC380V Super Capacitor Automatic Winding Machine 170rpm
AC380V Super Capacitor Automatic Winding Machine 170rpm

Large Image :  AC380V Super Capacitor Automatic Winding Machine 170rpm

Product Details:
Place of Origin: Shen Zhen
Brand Name: TICO
Model Number: STC-AJR650
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden packing
Delivery Time: 15~20 working days
Payment Terms: T/T
Supply Ability: 50 sets per month

AC380V Super Capacitor Automatic Winding Machine 170rpm

Voltage: AC380V Compressed Air: 0.45~0.6MPa
Winding Height: 100~170rpm Working Temperature: 20~30℃
Relative Humidity: 30~55% Rh Feature: Can Monitor Winding Length And Diameter
High Light:

AC380V Automatic Winding Machine


170rpm Automatic Winding Machine


automatic capacitor winding machine

Super Capacitor Automatic Winding Machine


Product introduction


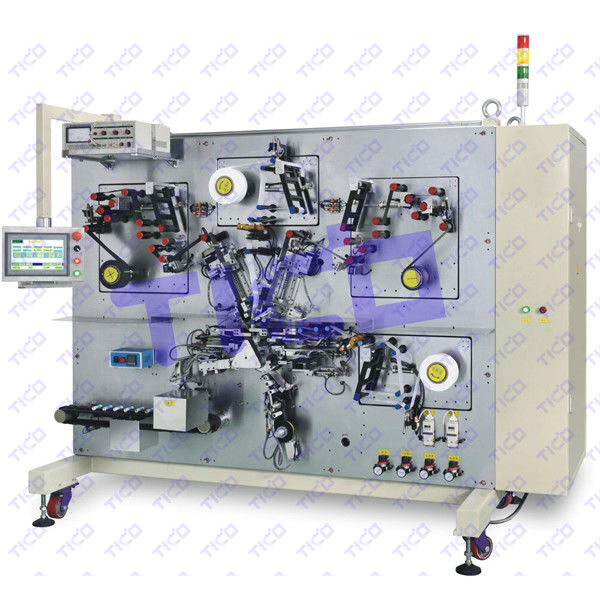

It is a fully automatic winding machine for lithium batteries supercapacitor, which is with the function of monitoring winding length and diameter. It is capable to carry out chamfer, hole punching, short circuit testing, it features stable working status and technology guarantee.


Key features


• Manually feeding material, automatically winding, tape sticking and discharging.

• High winding precision, cathode & anode electrode alignment, separator & electrode alignment tolerance within ±0.5mm. Diviation error of electrode and separator is less than ± 0.5mm during winding.

• The electrode cutting edge is flat and smooth, and the cutter is made of aluminum alloy to ensure the sharp edge.

• The separator surface is flat and smooth, no separator misalignment and no burrs after punching holes.

• It owns short circuit testing function.

• Separator tension can be set, automatic correction.

• It is equipped with brush dust removal function.

• Monitoring for winded diameter.


Technical parameters


 Model  STC-AJR650
 Voltage  AC380V
 Compressed air  0.45~0.6MPa
 Stacking length  1000~6000mm, tolerance within ±2mm (accorfing to different material thickness and length, maximum external winding diameter 100mm)
 Winding speed  For electrode L5000 * W100mm, 4~5 pcs/min output. It isaccording to different winding requirement.
 Winding pin  φ8~φ20mm optional according to different requirement
 Winding diameter  φ25~70mm, external diameter tolerance within ±0.8%
 Working surrounding  No corrosive gas and liquid, no explosive gas
 Working temperature  20~30℃
 Relative humidity  30~55% HR
 Weight  5500kg


 Material  Feeding method  Single piece length(mm)  Width(mm)   Thickness (μm)   Max external diameter(mm)  Inner diameter(mm)
 Dimension range  Dimension range  Tolerance  Dimension range  Tolerance
 Cathode electrode  Roll  600~6000  80~160  ±0.1  100~320  ±10  400  75.8
 Anlde electrode  Roll  600~6000  80~160  ±0.1  100~320  ±10  400  75.8
 Separator  Roll  80~160  ±0.1  16~50  ±10  350  75.8




1 year warranty with lifetime support. Man-made damage is not covered.
