Product Details:
|
| Model: | STC-4008Tn-5V50mA | Voltage And Current Testing Sample: | 4-wire Connecting |
|---|---|---|---|
| Server Operating System: | Windows 7 | Leak Current: | 0.005μA |
| Data Output: | EXCEL 2003, 2010, TXT | Database: | MySQL Database |

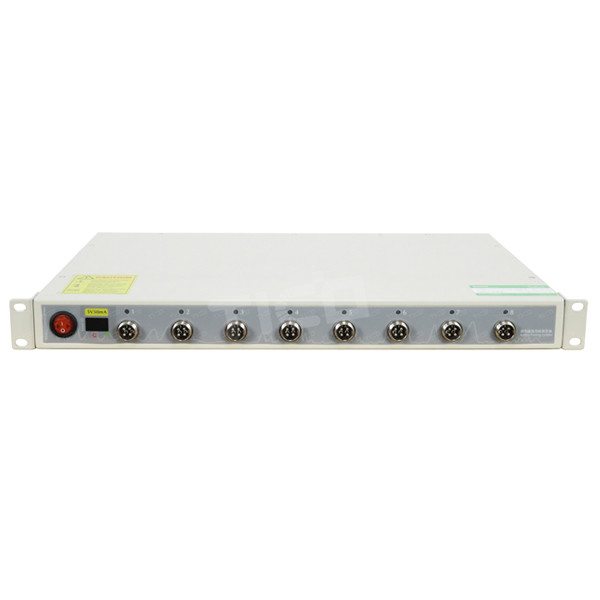

8 Channels 5V50mA Battery Testing Equipment for Coin Cell
Product Introduction
STC-4008Tn-5V50mA is a 8 channels battery testing system from 5μA~1mA,1mA~25mA, 25mA~50mA. Each channel can be controlled independently. It is widely used for coin cell testing, three electrode testing, material testing. It is a perfect testing device for universities, research institution.
Features
● Each channels is controlle independently.
● Double range.
● High testing efficiency.
● Widely application.
● Compact size, easy to move.
Technical Parameter
| Input Power | AC 220V ±10% / 50Hz | |
| Resolution | AD16bit; DA: 16bit | |
| Input Resistance | ≥1GΩ | |
| Input Power | 25W | |
| Channel Features | Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure | |
| Channel Control Mode | Independent Control | |
| Voltage | Per Channel Control Voltage Range | 25mV~5V |
| Minimum discharge voltage | -5V | |
| Accuracy | ± 0.05% of FS | |
| Stability | ± 0.05% of FS | |
| Current | Per Channel Current Range |
Range 1: 5μA~1mA , Range 2: 1mA~25mA, Range 3: 25mA~50mA. |
| Constant current cut-off current |
Range 1: 2μA, Range 2: 50μA , Range 3: 100μA. |
|
| Accuracy | ± 0.05% of FS | |
| Stability | ± 0.05% of FS | |
| Power | Per Channel Output Power | 0.25W |
| Stability | ± 0.1% of FS | |
| Time | Current Response Time | <500μs |
| Step Time Range |
≤(365*24 )hour/step. Time Form Support 00: 00: 00.000(h, min, s, ms) |
|
| Data Recording | Record Condition | Time△t: 100ms |
| Voltage△U: 10mV | ||
|
Current△I: Range 1: 2μA, Range 2: 50μA , Range 3: 100μA. |
||
| Record Frequency | 10Hz | |
| Charge | Charge Mode | Constant Current Charge, Constant Voltage Charge, Constant Current and Constant Voltage ChargeConstant Power Charge |
| End Conditon | Voltage, Current, Relative Time, Capacity, -△V | |
| Discharge | Discharge Mode | Constant Current Discharge,Constant Power Discharge, Constant Resistance Discharge |
| Discharge Mode | Voltage, Current, Relative Time, Capacity, -△V | |
| DCIR test supported | ||
| Pulse Test | Charge | Constant Current Charge, Constant Power Charge |
| Discharge | Constant Current Discharge, Constant Power Discharge | |
| Minimum Pulse Width | 500ms | |
| Pulse Number | 32 diffirent pulse for a single step | |
| Charge And Discharge Switch | continuous switched for a single pulse step | |
| End Condition | Voltage, Relative Time | |
| Cycle | Loop Measure Range | 1~65535 times |
| Max Steps Per Loop | 254 | |
| Nested Loop | Nested loop Function, Max Support 3 Layers | |
| Protection | Software Protection | Power-down Data Protection |
| Off-line Testing Function | ||
|
Setting Protection Condition, Setting Parameter: Low Voltage limit, Upper Voltage limit, Low Current limit, Upper Current limit, Delay Time |
||
| Hardware Protection | Additional Anti-reverse Protection Model | |
| Voltage and Current Testing Sample | 4-wire connecting | |
| Noise | <85dB | |
| Database | MySQL Database | |
| A Means of Communication of Upper Machine | TCP/IP Protocol | |
| Data Output | EXCEL 2003, 2010, TXT | |
| Communication Interface | Internet Access | |
| Server Operating System | Windows 7 | |
| Leak current | 0.005μA | |
| Per Unit Main Channels No. | 8 | |
| Dimensions | L443 * W307 * H48mm | |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
