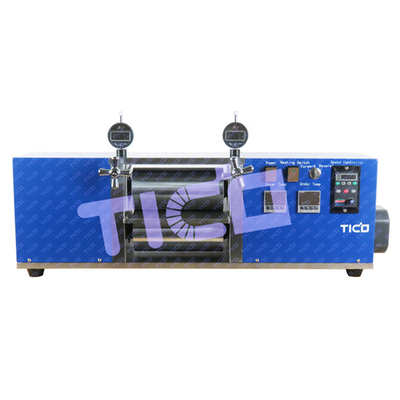

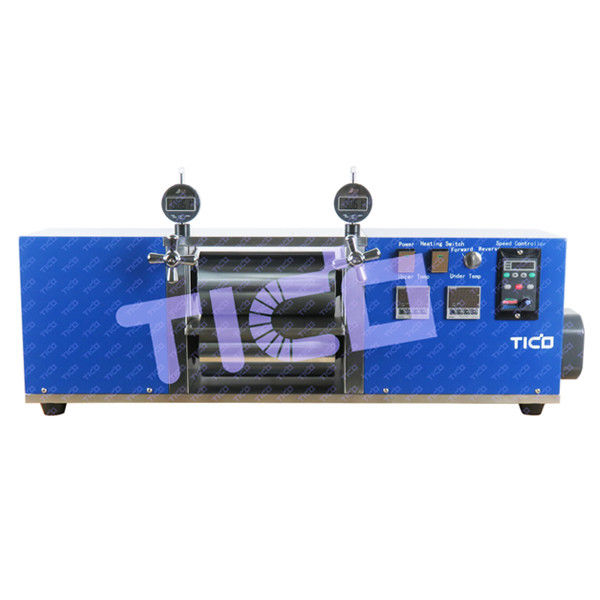

Heating Rolling Press Calender with 200mm Width Roller for Pouch Battery Lab Research

I'm Online Chat Now

Heating Rolling Press Calender with 200mm Width Roller for Pouch Battery Lab Research

Heating Rolling Press Calender with 200mm Width Roller for Pouch Battery Lab Research
Heating Rolling Press Calender with 200mm Width Roller for Pouch Battery Lab Research

Large Image :  Heating Rolling Press Calender with 200mm Width Roller for Pouch Battery Lab Research

Product Details:
Place of Origin: Shen Zhen
Brand Name: TICO
Model Number: STC-JS200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wood Packing
Delivery Time: 20~25 working days
Payment Terms: T/T
Supply Ability: 20 sets per month

Heating Rolling Press Calender with 200mm Width Roller for Pouch Battery Lab Research

Description
Working Voltage: AC110/220V Optional Upon Request Roller: Dia 100 X W200mm, Other Width Available
Roller Hardness: >HRC62 Pressing Thickness: 0~2mm Adjustable
Feeding Speed: Max 10mm/s Adjustable Heating Temperature: RT~ 120℃ Adjustable,digital Display
Power: 720W

Heating Rolling Press Calender with 200mm Width Roller for Pouch Battery Lab Research



Brief Introduction



STC-JS100 is used for battery electrode rolling press for battery research after coating and drying. It is with digital dial indicator, easy to operate.



Features



● Adopts built-in heating tubes inside the rollers for more evenly heating effect.

● Adjustable pressing thickness, digital dial indicators with memory function when shutdown.

● Digital display speed controller, easy to control and adjust the pressing speed.

● Vertical rollers installation design for convenient feeding and pressing forward & backward are both available.

● Heating temperature is adjustable and can be controlled separately by thermostats.



Technical Parameters



 Model

 STC-JS200

 Working voltage

 AC110/220V optional up request

 Roller

 Dia 100 x W200mm (other width can be optional )

 Roller hardness

 >HRC62

 Pressing thickness

 0~2mm adjustable

 Feeding speed

 Max 10mm/s adjustable

 Heating temperature

 Room temperature to 120℃ adjustable, digital display

 Power

 720W

 Dimension

 L819 * W230 * H330mm

 Weight

 75kg



Warranty



1 year's warranty with lifetime support.



FAQ



1. Are you a manufacturer ?



A: Yes, our factory is located in Shenzhen, China.
We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R& D department.



2. Do you accept customized product ?

A : Yes. Most of our products can be customzied to meet different requirements.



3. Will you provide test video before dispatch?

A : Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service ?

A : Yes, we can dispatch professional engineer for on-site installation service.
