Product Details:
|
| Product Namet: | Heat Rolling Press Machine | Working Voltage: | AC110/220V Optional Upon Request |
|---|---|---|---|
| Roller: | Dia.100 X W250mm | Roller Hardness: | >HRC62 |
| Pressing Thickness: | 0~2mm Adjustable | Feeding Speed: | Max 10mm/s Adjustable |
| Heating Temperature: | RT~ 120℃ Adjustable, Digital Display | Power: | 720W |

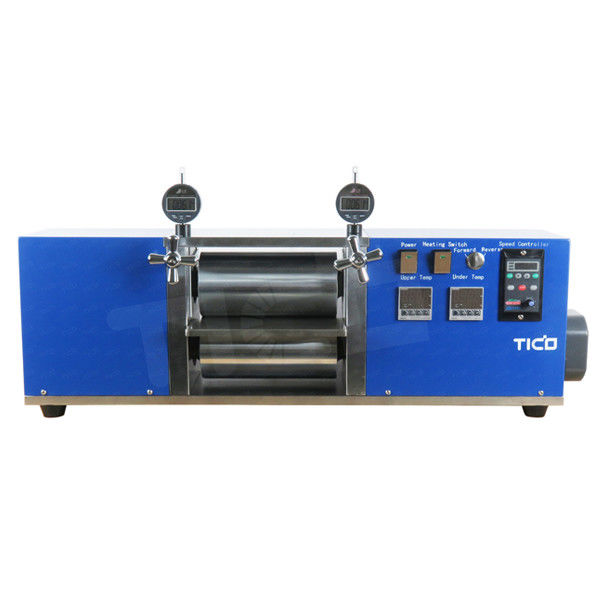

Heat Rolling Calendering Equipment for Polymer Pouch Battery Making with 250mm Width Roller
Brief Introduction
STC-JS250 is used for battery electrode rolling press for battery research after coating and drying. It is with digital dial indicator, easy to operate.
Features
● High roller hardness HRC62, surface plated by chrome treatment.
● Vertical rollers installation design for convenient feeding and pressing for strip material.
● Heating temperature max up to 120℃, digital display by thermostat.
● Safety protection cover is designed to prevent hand injured from high temperature.
● Slotting design for the metal frame is good for heat radiation.
● Pressing thickness can be adjusted.
● Rolling speed can be adjusted by speed controller.
● Electric rolling makes uniform pressing force.
Technical Parameters
|
Model |
STC-JS250 |
|
Working voltage |
AC110/220V optional up request |
|
Roller |
Dia.100 x W250mm (other width can be optional ) |
|
Roller hardness |
>HRC62 |
|
Pressing thickness |
0~2mm adjustable |
|
Feeding speed |
Max 10mm/s adjustable |
|
Heating temperature |
Room temperature to 120℃ adjustable, digital display |
|
Power |
720W |
|
Dimension |
L870*W230*H330mm |
|
Weight |
80kg |
Warranty
1 year's warranty with lifetime support.
FAQ
1. Are you a manufacturer ?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R&D department.
2. Do you accept customized product ?
A : Yes. Most of our products can be customzied to meet different requirements.
3. Will you provide test video before dispatch?
A : Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service ?
A : Yes, we can dispatch professional engineer for on-site installation service.
