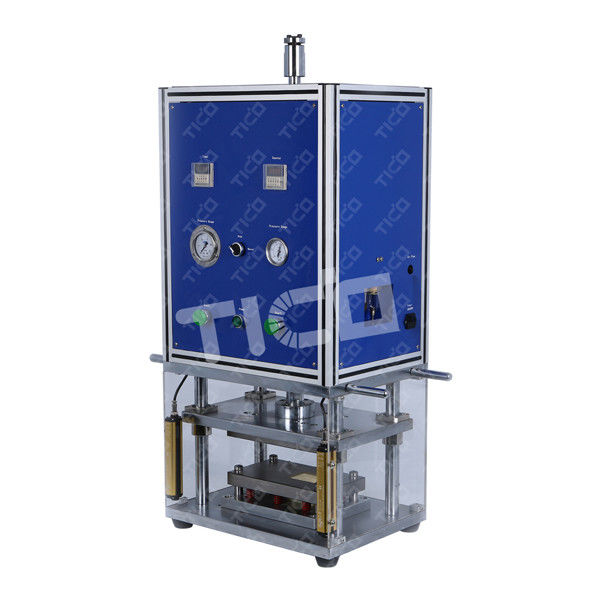

200mm Lab Semi-auto Polymer Pouch Cell Case Punching Equipment for Battery Research

200mm Lab Semi-auto Polymer Pouch Cell Case Punching Equipment for Battery Research
200mm Lab Semi-auto Polymer Pouch Cell Case Punching Equipment for Battery Research

Large Image :  200mm Lab Semi-auto Polymer Pouch Cell Case Punching Equipment for Battery Research

Product Details:
Place of Origin: Guangdong, China
Brand Name: TICO
Model Number: STC-BCK-SM200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard export wooden packing
Delivery Time: 15~23 working days
Payment Terms: T/T
Supply Ability: 30 sets per month

200mm Lab Semi-auto Polymer Pouch Cell Case Punching Equipment for Battery Research

Description
Model: STC-BCK-SM200 Punching Die Size: Max L200 * W150mm, Customizable
Punching Depth: ≤ 6mm Adjustable, Can Be Customized Aluminum-laminated Films Thickness: 0.1~0.2mm
Dimension: L460 * W320 * H925mm Weight: 176kg

200mm Lab Semi-auto Polymer Pouch Cell Case Punching Equipment for Battery Research



Brief Introduction



STC-BCK-SM200 semi-auto case/ cup forming machine is used for preparation. It is a semi-auto pouch cell aluminum laminated films cup forming machine, the punching thickness is adjustable. The pouched case without crow’s feet and corner collapse. IR sensor, dual start buttons and protection cover are included for safety operation.



Features



● Punching depth can be adjusted.

● Different size of punching die can be optional and easy to replace.

● The punched case without crow's feet and corner collapse.

● The punching die can only go down only when pressing the 2 buttons at the same time to avoid hurting hands.

● IR sensor is included for safty protection.

● Protection cover is included.

● It's designed with counter for calculating the punching numbers.



Technical Parameters



 Brand name  TICO

 Model

 STC-BCK-SM200

 Working voltage

 AC110V /220V optional

 Punching die size

 Max L200 * W150mm, customized size is available

 Punching depth

 ≤ 6mm adjustable, customized depth is available

 Aluminum-laminated films thickness

 0.1~0.2mm

 Power

 100W

 Air pressure

 0.5~0.7Mpa

 Material feeding

 Manually

 Dimension

 L460 * W320 * H925mm

 Weight

 176kg



Warranty



1 year warranty with lifetime support. Man-made damage is not covered.



FAQ



1. Are you a manufacturer?



A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.



2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.



3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
