Product Details:
|
| Product Name: | Cylindrical Cell Case Grooving Equipment | Applicable Battery Type: | 18650, 21700, 26650, 32650 |
|---|---|---|---|
| Power: | 140w | Grooving Depth: | 0~10mm Adjustable |
| Grooving Speed: | 0~300r/s | Grooving Width: | Grooving Width |
| Compressed Air: | 0.45~0.7MPa | Key Component Materials: | High-strengthen Chrome Steel, Anti-corrosion |
| High Light: | Cylindrical Cell Case Grooving Machine,140W Cell Case Grooving Machine,Case Grooving Cylindrical Cell Lab Equipment |
||

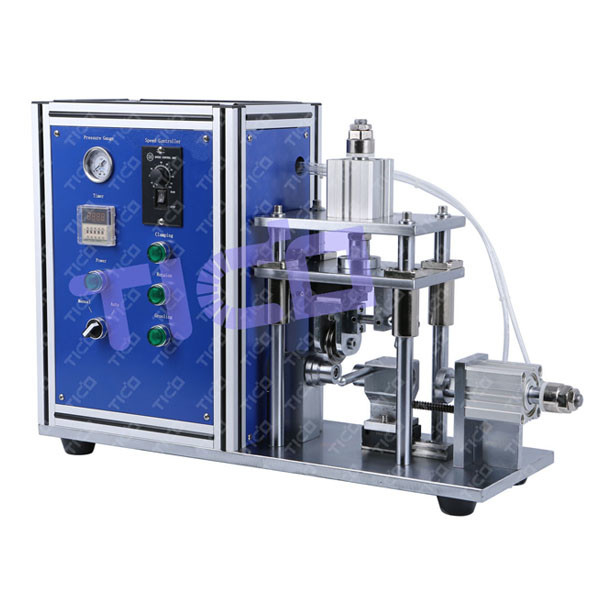

Speed Adjustable Cylindrical Cell Case Grooving Machine
Brief Introduction
STC-GC650L semi-auto cylindrical cell case grooving machine, which is mainly used in laboratory for 18650, 21700, 26650, 32650 cylindrical cell grooving.
Key Features
● Grooving width & depth are adjustable.
● it can be used for 18650, 21700, 26650, 32650 cylindrical cell case grooving.
● Manual & automatic operation mode can be set.
● Compact size, it can be put into glovebox.
● High precision grooving die, stable performance.
Technical Parameters
| Model | STC-GC650L |
| Voltage | AC220V, 50Hz |
| Power | 140w |
| Grooving depth | 0~10mm adjustable |
| Grooving speed | 0~300r/s |
| Grooving width | 1.1~1.6mm |
| Accuracy | ±0.1mm |
| Compressed air | 0.45~0.7MPa |
| Weight | 40kg |
|
Key component materials |
High-strengthen chrome steel, anti-corrosion |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes, most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
