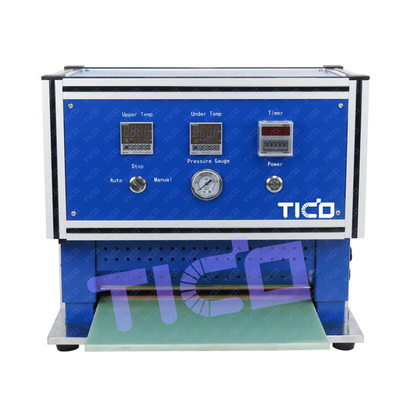

400mm Pouch Cell Heat sealing machine For Polymer Aluminum Laminated Film Top Side

Name: 400mm Pouch Cell Heat sealing machine For Polymer Aluminum Laminated Film Top Side
Brand: Shenzhen TICO Technology Co.,Ltd.
SKU: STC-BRF-G400
Price: 4,000.00 USD
Availability: InStock

Brand Name:	TICO
Model Number:	STC-BRF-G400
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	5~8 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Sealing Blde:

L400 * W5mm

Upper Blade Temp.:

Room Temperature~300℃, Suggest: 200℃

Lower Blade Temp.:

Room Temperature~300℃, Suggest: 180℃

Pressure Guage:

Embedded Design

Dimension:

L520 * W320 * H500mm

Weight:

55kg

Packaging Details:

Standard export wooden package

Supply Ability:

20 sets per month

Highlight:

400mm Pouch Cell Heat Sealing Machine

Pouch Cell Heat Sealing Machine

Heat Sealing Pouch Cell Lab Equipment

Product Description

Pouch Cell Aluminun Laminated Case Top & Side Heat Sealing Machine

Product Details

STC-BRF-G400 is a hot sealing machine, mainly used for pouch cell aluminum cup edges with tabs before electric liquid filling process. The sealing head is made of copper with a godd heating conduction, the heating temp of upper and lower sealing head was controlled separated and can be setable.

Key Features

● Upper and lower sealing head temperature can be controlled separated, temperature is adjustable and digital display by thermostat.

● Sealing head is made of copper with a good heat conduction.

● Pressure gauge is embedded and easy to che the sealing pressure.

● Firmly sealing.

● Within the safety protection cover to avoid scalding.

● Sealing time can be adjusted by timer.

● The sealing blade length is 400mm, battery case < 400mm can be used without replacing sealing blade.

Technical Parameters

Model	STC-BRF-G400
Working voltage	AC110V/220V optional
Power	1000W
Sealing blade length	400mm, customized size is available
Sealing blade width	5mm, customized size is available
Upper sealing blade temperature	Room temperature~300℃ adjustable, 200℃ is suggested
Lower sealing blade temperature	Room temperature~300℃ adjustable, 180℃ is suggested
Sealing time	2~3s, 0~99s settable
Sealing pressure	0.5~0.7Mpa
Dimension	L520 * W320 * H500mm
Weight	55kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
