Product Details:
|
| Application: | Polymer Pouch Cell Core Winding | Operation Mode: | Semi-auto Operation |
|---|---|---|---|
| Separator Width: | 16~60mm | Electrode Width: | 23~98mm |
| Winidng Accuracy: | ≤0.5mm | Compressed Air: | 0.4~0.7MPa |
| High Light: | 50Hz Battery Winding Machine,AC220V Battery Winding Machine,Electrode Winding Pouch Cell Lab Equipment |
||

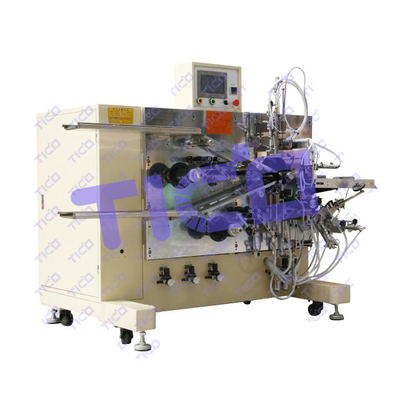

Semi-auto Pouch Cell Core Winding Machine
Product Details
It is used for pouch cell winding, manually load the electrodem, the winding will be completed automatically.
Key Features
• Manually loading electrode, the winding, tape pasting, tape cutting will bw finished automatically.
• Separator consistent tension control.
• The adhesive tape is applied longitudinally (the end tape is paeallel to the tab), the adhesive tape is flat, the location of the adhesive tape is flat, the location of the adhesive tape can be precisely controlled without straining the cell.
• Different battery size can be adjusted.
• Winding speed is adjustable.
Technical Parameters
| Model | STC-CJR-SM18 |
| Voltage | AC220V, 50Hz |
| Power | 1.5KW |
| Separator width | 16~60mm |
| Electrode width | 23~98mm |
| Winding mode | Roll-type separator, sheet electrode; Manual laoding electrode automatically winding |
| Winding capacity | 5~10 pcs/min (depending on the battery mode) |
| Winding accuracy | ≤0.05mm |
| Compressed air | 0.4~0.7MPa |
| Dimension | L1660 * W1300 * H1570mm |
Material Size Requirement:
| Material | Length (mm) | Width (mm) | Thickness (mm) | ID (mm) | OD(mm) |
| Cathode electrtode | 180~2000 | 23~98 | 0.1~0.2 | / | / |
| Anode cathode | 180~2000 | 23~98 | 0.1~0.2 | / | / |
| Separator | Roll | 25~100 |
0.016~0.045 |
76.2 | 250 |
| End tape | Ro;ll; | 8~20 | 0.01~0.035 | 76.2 | 150 |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes, most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
