Laboratory Slot Extrusion Film Coating Machine Packages For Lithium Ion Battery Electrode Making

Laboratory Slot Extrusion Film Coating Machine Packages For Lithium Ion Battery Electrode Making
Laboratory Slot Extrusion Film Coating Machine Packages For Lithium Ion Battery Electrode Making Laboratory Slot Extrusion Film Coating Machine Packages For Lithium Ion Battery Electrode Making Laboratory Slot Extrusion Film Coating Machine Packages For Lithium Ion Battery Electrode Making Laboratory Slot Extrusion Film Coating Machine Packages For Lithium Ion Battery Electrode Making

Large Image :  Laboratory Slot Extrusion Film Coating Machine Packages For Lithium Ion Battery Electrode Making

Product Details:
Place of Origin: Shenzhen, China
Brand Name: TICO
Model Number: STC-TMH300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard export wooden box package
Delivery Time: 3~5 days
Payment Terms: T/T
Supply Ability: 100 sets per month

Laboratory Slot Extrusion Film Coating Machine Packages For Lithium Ion Battery Electrode Making

Description

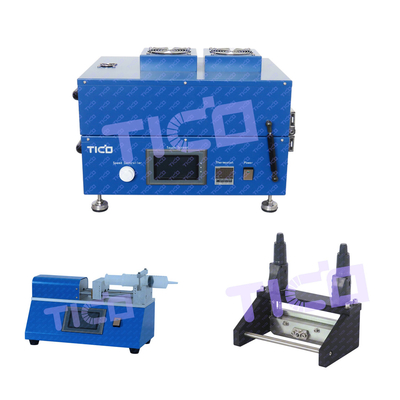

Coating Packages: Hot Film Coater, Slot Extrusion Film Applicator, Plunger For Slurry Feeding Voltage: AC220V, 50Hz
Coating Mode: Slot Extrusion Film Coating Coating Speed: 0.5~20mm/s Adjustable
Coating Thickness Range: 0~5mm Adjustable Syringe Volume: Max 50ml
Slurry Feeding Speed: 0.05~5mm/s Accuracy: ±3μm, 1μm Digital Display Optional
High Light:

Laboratory Slot Extrusion Film Coating Machine

,

Lithium Ion Battery Film Coating Machine

Lab Slot Extrusion Film Coating Machine Packages for Lithium-ion Battery Electrode Making



Product Introduction of Slot Extrusion Film Coating Packages



It adopts the sloot extrusion film coating (doctor blade, four side film coating, etc. are optional). It is mainly used in all kinds film coating reasearch, like ceramic films, crystal films, lithium battery electrode coating, etc.



Product Specifications



 Voltage  AC220V, 50Hz
 Coating mode  Slot extrusion film coating
 Coating stroke  300mm
 Coating driven  Electric motor driven
 Coating speed  0.5~20mm/s
 Coating thickness range  0~5mm adjustable
 Vacuum chuck

 Aluminum material,

 L415 *W200 *H30mm

 Syringe volume  Max 50ml
 Feeding speed  0.05~5mm/s
 Accuracy  ±3μm, 1μm digital display optional
 Heating temperature  RT~130℃, digital display, accuracy±1℃
 Dimension  L560 * W420 * H370mm
 Weight  65kg



Key Features



(1) It adopts the slot extrusion film coating, high coating accuracy and repeatability.

(2) Feeding by plunger pump, the coating is sealed during extrusion coating, which is less affected by environment and low waste.Vacuum aluminum chuck is designed for quick suction of substrate, built-in type vacuum pump.

(3) Easy to dismantle & clean the coating blade and slurry feeding system.

(4) Large area heating evenly to ensure the high-precision average temp inside of chamber.

(5) Flat type coating, electric driven the blade coating, coating speed is stable and adjustable.

(6) It is easy to operate and small size, can be used inside vacuum glovebox.

(7) PLC, touch screen controlled, convenient for equipment parameters setting, saving and controlling.



SHENZHEN TICO TECHNOLOGY CO., LTD



1. Total solution for Lithium-ion Battery R&D.

2. One-stop service in designing, manufacturing and marketing of battery equipment &material.

3. An integrated company of industry &trade.



FAQ



1. Are you a manufacturer?

TICO: Yes, our factory is located in Shenzhen, China.

We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.



2. Do you accept customized product?

TICO: Yes, most of our products can be customized to meet different requirements.



3. Will you provide test video before dispatch?

TICO: Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service?

TICO: Yes, we can dispatch professional engineer for on-site installation service.
