| Brand Name: | TICO |
| Model Number: | STC-BRF-E200 |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Delivery Time: | 3~5 days |
| Payment Terms: | T/T |

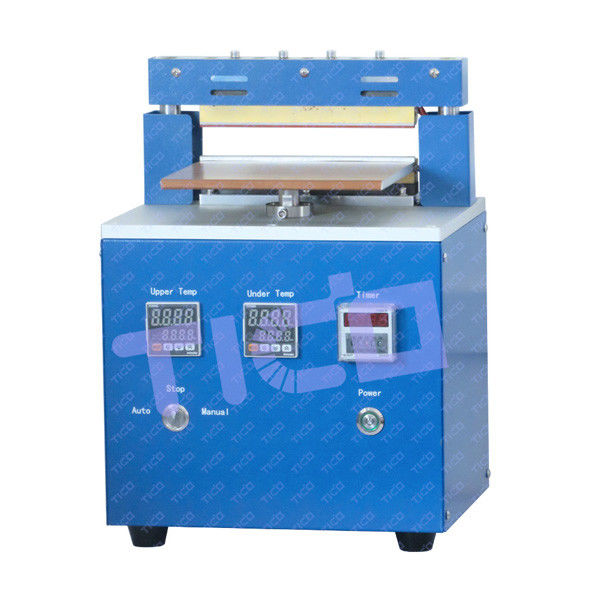

Electric Hot Sealing Machine For Pouch Cell Al-Laminated Case Top& Side Edges Sealing
Top& Side Edges Hot Sealing Machine for Polymer Pouch Cell
Product Details of Hot Sealing Machine
It is mainly used for pouch cell case top &side edges hot sealing, especial in vacuum glovebox. It is electric driven, no gas required.
Technical Parameters of Hot Sealing Machine
| Model | STC-BRF-E200 |
| Voltage | AC220V, 50Hz |
| Power | 1KW |
| Application | Side sealing≤190mm; top sealing: 200mm (gas pocket is included) |
| Sealing length | 200mm |
| Sealing width | 5mm±0.4mm (2~10mm optional) |
| Thickness of side edges sealing | 60~300μm |
| Thickness of top tab sealing | 200~700μm |
| Sealing temperature | RT~250℃ adjustable |
| Temperature accuracy | ±2℃ |
| Accuracy of sealing thickness | <15um |
| Dimension | L310 * W240 * H450mm |
| Weight | 30kg |
Key Features of Hot Sealing Machine
• Electric driven, no gas required.
• Unique safety protection, anti-scald design. The temperature of upper &lower sealing blade can be adjusted by temperature controller.
• The sealing blade is made of copper with good heating conduction and low power consumption, which is high working efficiency.
• The upper and lower sealing heads are guided by two linear guide sleeves, the upper and lower movements are flexible, the guidance is accurate to ensure the parallelism requirement of the products after edge sealing.
• It is suitable for various kinds of battery, and easy to adjust, no need to adjust and replace the sealing head.
• Exquisite size, and sealing is flat & evenly.
• Automatic and manual operation can be switched.
• Easy to clean and replace the copper sealing blade.
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
SHENZHEN TICO TECHNOLOGY CO., LTD
1. Total solution for Lithium-ion Battery R&D.
2. One-stop service in designing, manufacturing and marketing of battery equipment &material.
3. An integrated company of industry &trade.
FAQ
1. Are you a manufacturer?
TICO: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
TICO: Yes, most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
TICO: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
TICO: Yes, we can dispatch professional engineer for on-site installation service.
|
|
