Twany High Temperature Resistant Polyimide Tape

Brand Name:	TICO
Model Number:	STC-P-GJD
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	5~8 working days
Payment Terms:	T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

High Temperature Resistance:

-40~+150℃

Color:

Twany

Packaging Details:

Carton packing box

Supply Ability:

80 pieces per month

Highlight:

High Temperature Pouch Cell Tape

Pouch Cell High Temperature Tape

250C Hot Resistance Pouch Cell Tape

Product Description

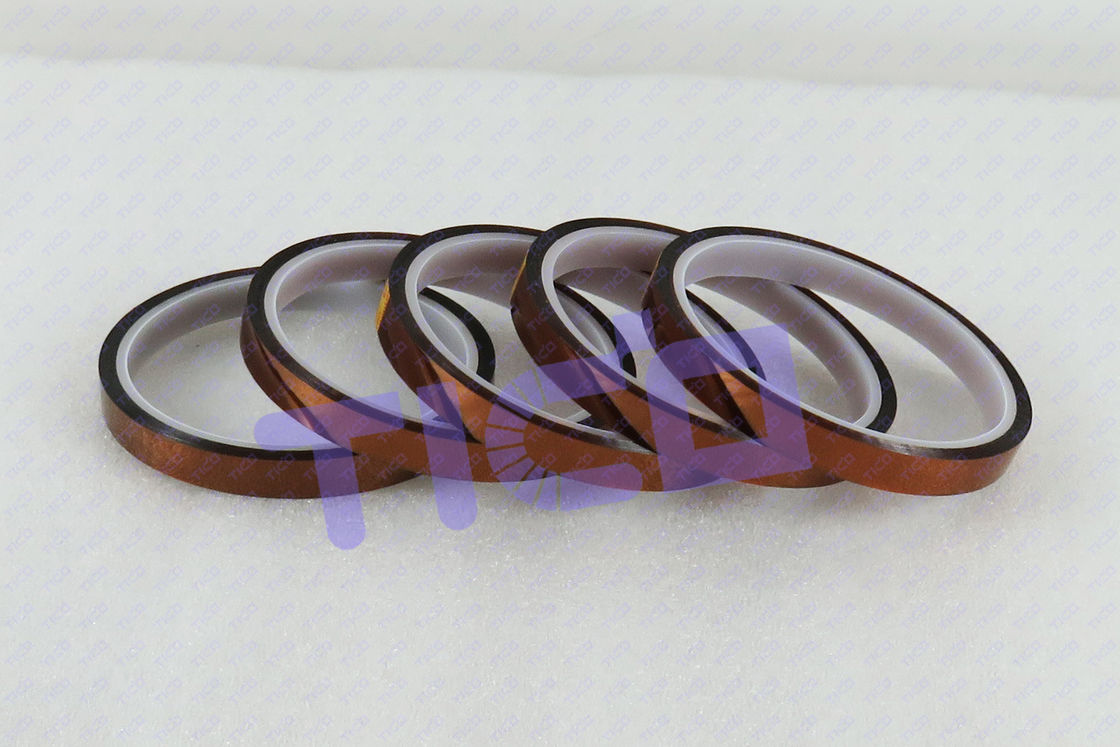

Twany High Temperature Resistant Polyimide Tape

Brief Introduction

The tape is a single-side tape with polyimide film substrate coated of a special silicone glue. It is used for insulation protection and fixing of pouch cell core, etc.

Technical Parameter

Item	Unit	Tolerance range	Typical value	Test method
Substrate	mm	0.025±0.005	0.025	PSTC-71
Glue thickness	mm	0.025±0.005	0.025
Total tape thickness	mm	0.05±0.01	0.05
Length	M	33M	33
Adhesion (to steel plate)	N/25mm	≥4.0	4	PSTC-101
Retention	N/25mm	70-80	72	PSTC-31
Initial tackiness	#	≥3#	3	PSTC-31
High temperature resistance	250℃

Note: The above typical values are for reference only and are not used as acceptance criteria.

Model	STC-P-GJD
Base material	Polyimide film
Adhesive	Silicone
Color	Tawny
Thickness	0.035mm, 0.042mm, 0.055mm, 0.060mm
Peel force	5N/25mm, 5N/25mm, 6N/25mm, 6N/25mm
Tensile strength	50N/25mm, 50N/25mm, 75N/25mm, 75N/25mm
Heating resistance	-40~+150℃
Width	2-500(mm)
Length	33m/50m/66m/100m

Warranty

1 year warranty with lifetime support. Man-made damage is not included.
