8 Channels Horizontal Hot Press Formation Machine For Pouch Cell

Name: 8 Channels Horizontal Hot Press Formation Machine For Pouch Cell
Brand: Shenzhen TICO Technology Co.,Ltd.
SKU: STC-BHF-8C
Price: 4,000.00 USD
Availability: InStock

Brand Name:	TICO
Model Number:	STC-BHF-8C
MOQ:	1 Piece
Price:	Negotiable
Delivery Time:	10-15 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen, China

Power Supply:

AC 220V ±10%, 50Hz

Total Power:

3KW

Compressed Air:

0.25～0.76MPa

Packaging Details:

Standard export wooden packing

Supply Ability:

10 sets per month

Product Description

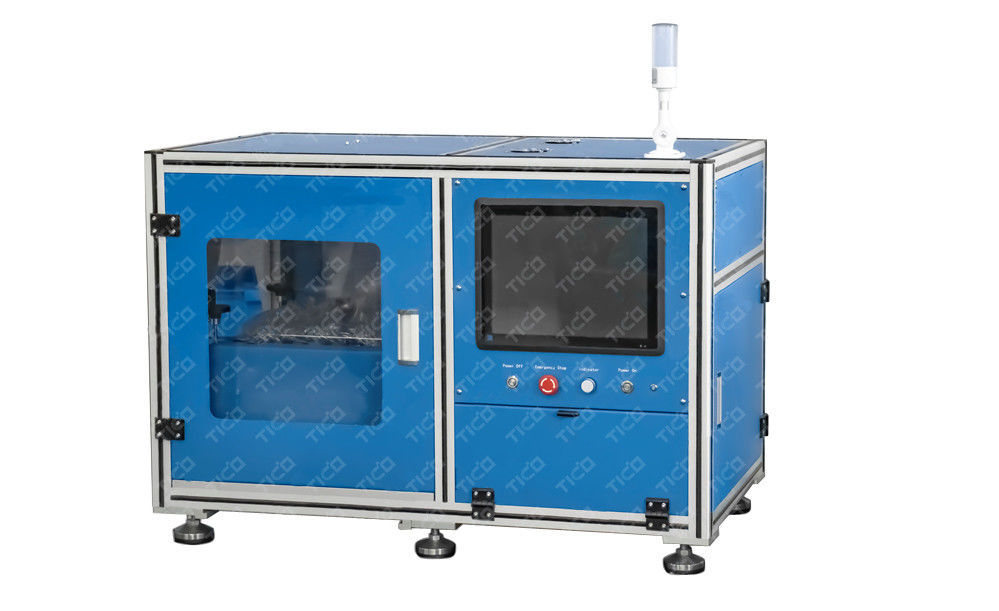

Horizontal Hot Press Formation Machine for Pouch Cell

Brief Introduction

STC-BHF-8C is a 8 channels hot press forming machine for same-side tab batteries. The equipment adopts horizontal structure, with 1 group of pressurized structure and 4 pressing plates per pressurized structure. Each layer of pressing plate can be used for 2 batteries, total of 8 channels. The equipment is mainly used for pouch lithium-ion batteries to be formation under hot-pressing condition. It can not only combine the existing battery formation process, drying and shaping process, but also shorten the formation time, reduce the battery production cycle and reduce labor. It enables the battery to complete the formation and hot press shaping, and also makes the surface after pumping and sealing more flatter and more beautiful in appearance.

Key Features

● When the equipment abnormal power off occurs, the current process step can be continued after the power off is restored.

● Fire alarm protection, overvoltage protection, voltage and current fluctuation rate protection.

● Setting the emergency stop button, the fixture will open automatically when emergency stop occurs.

● Accurately control the per-process end conditions for time-limit, voltage-limit, and current-limit.

● Charging data for each battery can be presented in data list form for user viewing and output printing.

Technical Parameters

Model	STC-BHF-8C
Power supply	AC 220V±10%, single phase
Total power	3KW
Compressed air	0.25～0.76MPa
Ambient temperature	25±15℃
Relative humidity	30%～75%
Dimension	L1130 * W630 * H800mm
Weight	200kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer ?

A: Yes, our factory is located in Shenzhen, China.

We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R& D department.

2. Do you accept customized product ?

A : Yes. Most of our products can be customzied to meet different requirements.

3. Will you provide test video before dispatch ?

A : Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service ?

A : Yes, we can dispatch professional engineer for on-site installation service.
