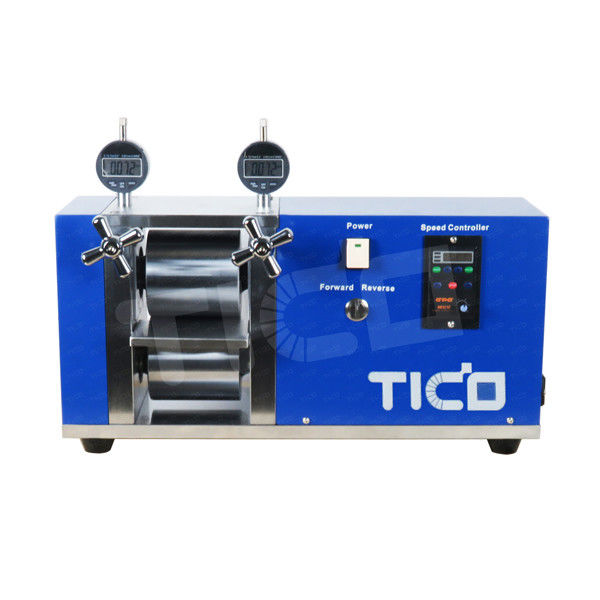

100mm Width Electric Roll Press Machine for Electrode Preparation

Name: 100mm Width Electric Roll Press Machine for Electrode Preparation
Brand: Shenzhen TICO Technology Co.,Ltd.
SKU: STC-DDG-100
Price: 2,900.00 USD
Availability: InStock

Brand Name:	TICO
Model Number:	STC-DDG-100
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	5~8 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Product Name:

Electric Battery Electrode Rolling Press Equipment

Working Voltage:

AC220V±10%

Roller Size:

Dia 96x W100mm

Feedig Speed:

0~40mm/s Adjustable

Dimension:

L520 * W220 * H350mm

Weight:

50kg

Packaging Details:

Wood Packing

Supply Ability:

80 sets per month

Highlight:

4 Inch Battery Rolling Press Machine

adjustable Battery Rolling Press Machine

Electrode Rolling Press Machine

Product Description

100mm Width Electric Roll Press Machine for Electrode Preparation

Brief Introduction

STC-DDG-100 is a compact electric rolling press machine, which can be used for battery electrode pressing for battery research. The pressing thickness and speed can be adjusted. It is designed with dual roller of dia.96mm x W100mm.

Features

● High roller hardness HRC62, surface plated by chrome treatment.

● Vertical rollers installation design for convenient feeding and pressing for strip material.

● Pressing thickness can be adjusted.

● Rolling speed can be adjusted by speed controller.

● Electric rolling makes uniform pressing force.

Technical Paramters

Model	STC-DDG-100
Voltage	AC220V ±10%, 50Hz
Power	200W
Operation mode	Electric
Feeding speed	0 ~ 40mm/s
Roller width	0～100mm
Roller diameter	φ96mm
Pressing thickness	0 ~ 3mm adjustable
Roller cylindricity	≤ ±2µm
Roller hardness	HRC62
Roller smoothness	> 0.4
Gear	Grinding grade
Roller placement	Vertical
Dimension	L520 * W220 * H350mm
Weight	50kg

Warranty

1 year warranty with lifetime support.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service
