4" Electric Battery Electrode Rolling Press Machine

I'm Online Chat Now

4" Electric Battery Electrode Rolling Press Machine

4" Electric Battery Electrode Rolling Press Machine
4" Electric Battery Electrode Rolling Press Machine

Large Image :  4" Electric Battery Electrode Rolling Press Machine

Product Details:
Place of Origin: Shenzhen, China
Brand Name: TICO
Model Number: STC-DG100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wood Packing
Delivery Time: 5~8 working days
Payment Terms: T/T
Supply Ability: 130 sets per month

4" Electric Battery Electrode Rolling Press Machine

Description
Product Name: Electric Battery Electrode Rolling Press Equipment Working Voltage: AC110 / 220V Optional
Roller: Dia 100x W100mm As Standard, Others Optional Pressing Thickness: 0~2mm Adjustable
Pressing Speed: 0~40mm/s Adjustable Power: 120W
Dimension: L385 * W245 * H355mm Weight: 55kg
High Light:

4 Inch Battery Rolling Press Machine

,

adjustable Battery Rolling Press Machine

,

Electrode Rolling Press Machine

4" Electric Battery Electrode Rolling Press Machine



Brief Introduction

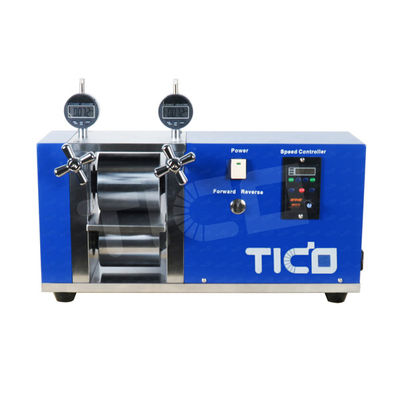

STC-DG100 is a compact electric rolling press machine, which can be used for battery electrode pressing for battery research. The pressing thickness and speed can be adjusted. It is designed with dual roller of dia.100x W100mm.



Features



● High roller hardness HRC62, surface plated by chrome treatment.

● Vertical rollers installation design for convenient feeding and pressing for strip material.

● Pressing thickness can be adjusted.

● Rolling speed can be adjusted by speed controller.

● Electric rolling makes uniform pressing force.



Technical Paramters



 Model

 STC-DG100L

 Working voltage

 AC110/220V optional upon request

 Power  120W

 Roller

 Dia 100x W100mm ( Other width can be optional )

 Roller hardness

 >HRC62

 Pressing thickness

 0~2mm adjustable

 Pressing speed

 0~40mm/s adjustable

 Dimension

 L385 * W245 * H355mm

 Weight

 55kg





Warranty



1 year warranty with lifetime support.





FAQ



1. Are you a manufacturer?



A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.



2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.



3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service
