Lab 50L Vacuum Drying Oven for Drying and Sterilization

Brand Name:	TICO
Model Number:	STC-KZK-502
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	10-15 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Prouduct Name:

Vacuum Drying Oven

Input Voltage:

1400W

Temperature:

RT+10 ~ 200°C Is Standard, RT+10 ~ 250°C Is Customized

Vacuum Degree:

133Pa

Volume:

50L (other Volume Optional)

Tray:

2 Pcs (tray Quantity Optional)

Packaging Details:

Wood Packing

Supply Ability:

30 sets per month

Highlight:

Compact Pouch Cell Lab Equipment

1450W Pouch Cell Lab Equipment

50L Vacuum Drying Chamber

Product Description

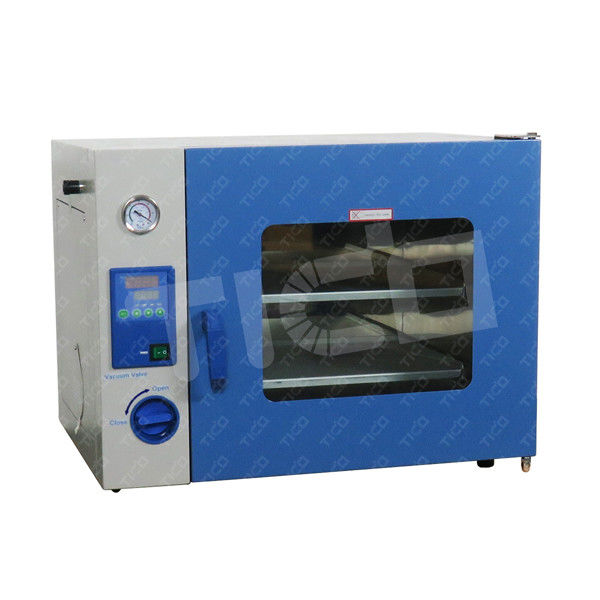

Lab 50L Vacuum Drying Oven for Drying and Sterilization

Brief Introduction

The equipment is a compact vacuum drying oven, widely used in laboratory. It is applicable for the drying, sterilization and heat treatment for the articles under vacuum conditions. Heating temperature is adjustable, which can maximally reach to 200℃. It's a 50L oven with 2-layer trays.

Features

● The working chamber is rectangular to achieve the maximum of effective volume.

● Double toughened explosion-proof glass door ensures security, and allows observing the inside material easily.

● 133Pa high vacuum degree.

● Heating temperature is settable.

Technical Parameters

Model	STC-KZK-502
Working voltage	AC220V±10%, 50Hz
Input voltage	1400W
Temperature	RT+10~200℃ is standard, RT+10~250℃ can be customized
Constant temperature fluctuation	±1℃
Temperature resolution	0.1℃
Vacuum degree	133Pa
Vacuum pump	External connecting
Chamber material	304 Stainless steel
Volume	50L (other volume available)
Tray	2Pcs (tray quantity optional)
Chamber inner size	L415 * W370 * H345mm
Dimension	L710 * W560 * H550mm
Weight	55kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
