Product Details:
|
| Product Name: | Pouch Cell Heat Sealing Machine | Sealing Blade Size: | L200 X W5mm |
|---|---|---|---|
| Upper Blade Temp.: | RT~300℃, Recommend: 200℃ | Lower Blade Temp.: | RT~300℃, Recommend: 180℃ |
| Working Voltage: | AC110 / 220V Optional | Power: | 1000W |
| Dimension: | L320 * W320 * H500mm | Weight: | 40kg |
| High Light: | 1000W Pouch Cell Lab Equipment,Laminated Film Pouch Cell Lab Equipment,Aluminum Lab Heat Sealer |
||

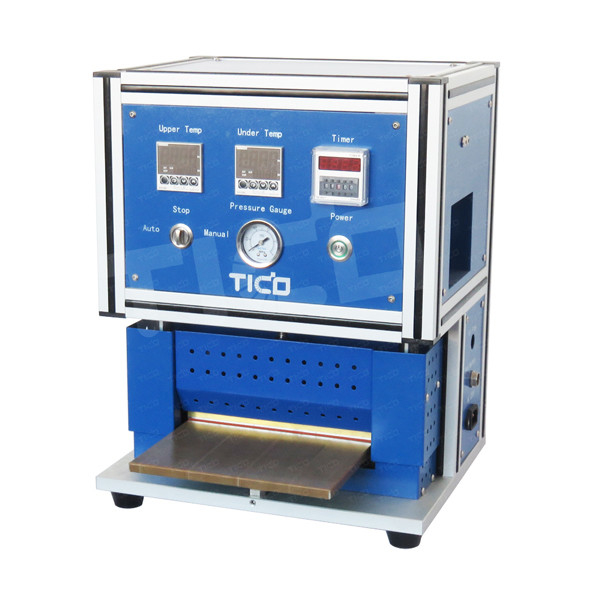

Pouch Cell Aluminun Laminated Case Heat Sealer for Lab Research
Brief Introduction
STC-SFZ200 is used for pouch cell aluminum laminated film case top&side hot sealing with tab before electrolyte injection process. The sealing blade is made from copper with good heat conduction, the heating temperature of upper and lower sealing blade are controlled separately and settable.
Features
● Upper and lower sealing blade temperature can be controlled separately, temperature is adjustable and digital display by thermostat.
● Sealing head is made from copper with good heat conduction.
● Pressure gauge is embedded and easy to observe the sealing pressure.
● Firmly sealing.
● Safety protection cover is included to avoid scalding.
● Sealing time can be adjusted by timer.
● The sealing blade length is 200mm, battery case < 200mm can be used without replacing sealing blade.
Technical Parameters
| Model | STC-SFZ200 |
| Working voltage | AC110 / 220V optional |
| Sealing blade length | 200mm, customized size is available |
| Sealing blade width | 5mm, customized size is available |
| Upper sealing blade temperature | Room temperature ~300℃ adjustable, 200℃ is suggested |
| Lower sealing blade temperature | Room temperature ~300℃ adjustable, 180℃ is suggested |
| Sealing time | 2~3s, 0~99s settable |
| Sealing pressure | 0.5~0.7Mpa |
| Power | 1000W |
| Dimension | L320 * W320 * H500mm |
| Weight | 40kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
