Product Details:
|
| Name: | Semi-auto Electrode Die Cutter | Model: | STC-MQ280 |
|---|---|---|---|
| Cutting Die Size: | Max L280 * W180mm, Customized Size Is Available | Air Cylinder: | 3T |
| Speed: | 800~2000pcs/h | Weight: | 170kg |

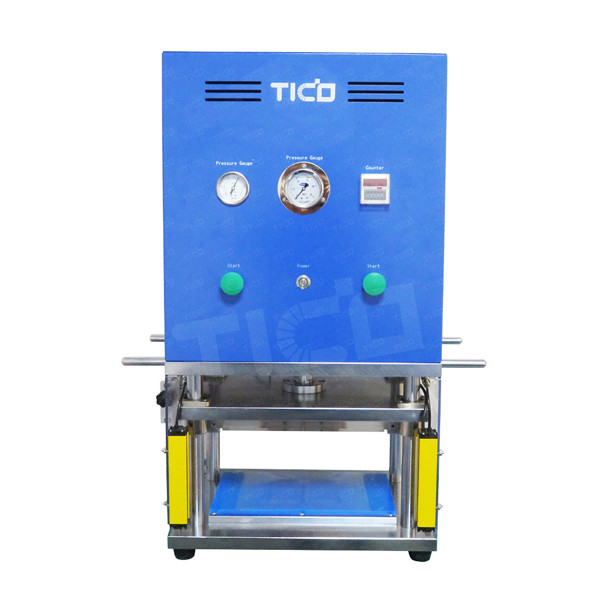

Pouch Cell Semi-auto Die Cutting Machine with L280 * W180mm Cutting Die
Brief Introduction
STC-MQ280 semi-auto electrode die cutter is a necessary equipment for pouch cell electrode preparation. It is used for pouch cell electrode cutting to produce specific shapes of cathode and anode with current collector tab. Dual start buttons to ensure safety operation to avoid hands injured. The cutting without burr and high accuracy.
Features
● Different size of cutting die can be optional and easy to replace.
● The cutting no burr, no coated material drop.
● 2 Start buttons, the die can only go down only when pressing the 2 buttons at the same time. The unique design to avoid hands get injured.
● It is designed with counter, the operator can know the cutting numbers easily.
● It is semi-auto, high cutting speed.
● Long lifetime for the cutting die, >30000 times.
Technical Parameter
| Model | STC-MQ280 |
| Cutting die size | Max L280 * W180mm, customized size is available |
| Cuting accuracy | ±0.1mm |
| Air cylinder | 3T |
| Air pressure | 0.5~0.7Mpa |
| Material feeding | Manual |
| Speed | 800~2000pcs/h |
| Dimension | L550 * W455 * H900mm |
| Weight | 170kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R& D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
