100mm Heated Calender Machine for Battery Electrode Roll Press

100mm Heated Calender Machine for Battery Electrode Roll Press

Brief Introduction

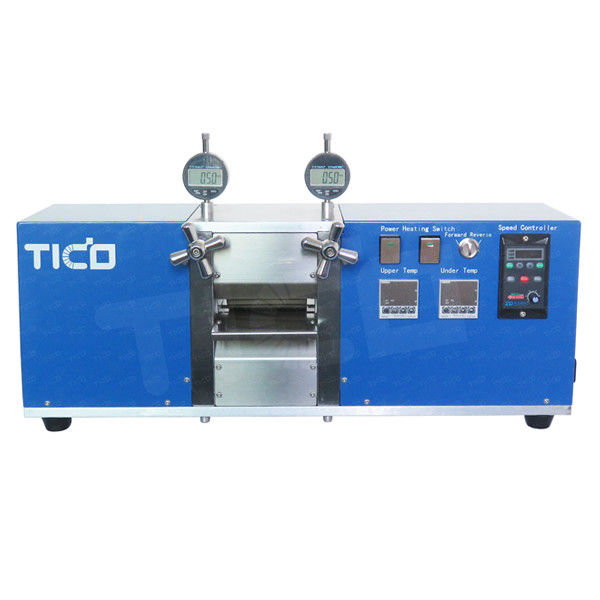

STC-DRG-100 is a compact heated roll press machine, mainly used for battery electrode pressing, max temperature to 130℃ adjustable and digital display by thermostat. The pressing gap and pressing speed is adjustable. 100mm width roller as standard model, the other width roller can be optional upon request.

Features

● High roller hardness HRC62, surface plated by chrome treatment.

● Vertical rollers installation design for convenient feeding and pressing for strip material.

● Heating temperature max up to 130℃,digital display by thermostat.

● Safety protection cover is designed to prevent hand injured from high temperature.

● Slotting design for the metal frame is good for heat radiation.

● Pressing thickness can be adjusted.

● Rolling speed can be adjusted by speed controller.

● Electric rolling makes uniform pressing force.

● Forward & backward are available.

Technical Parameters

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
