Product Details:
|
Product Namet: | Heat Rolling Press Machine | Working Voltage: | AC110/220V Optional Upon Request |
---|---|---|---|
Roller: | Dia 100 X W100mm (Other Width Can Be Optional ) | Roller Hardness: | >HRC62 |
Pressing Thickness: | 0~2mm Adjustable | Feeding Speed: | Max 10mm/s Adjustable |
Heating Temperature: | RT~ 120℃ Adjustable,digital Display | Power: | 720W |
Dimension: | L390 * W250 * H356mm | Weight: | 60kg |
High Light: | HRC62 Battery Calendering Machine,720W Battery Calendering Machine,adjustable Electrode Rolling Press Machine |
Hot Rolling Press Maching for Pouch Cell Electrode
Brief Introduction

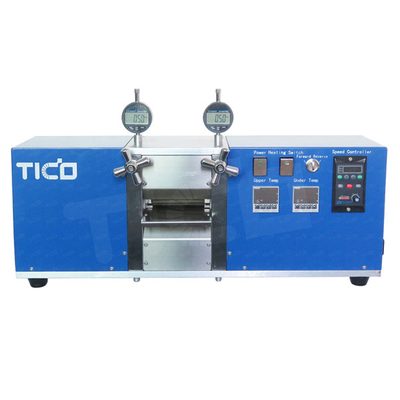

STC-DRG-100 is a compact electric hot roll press used for battery electrode pressing, max temperature to 120℃ adjustable and digital display by thermostat. The pressing gap and pressing speed is adjustable. 100mm width roller as standard model, the other width roller can be optional upon request.
Features
● High roller hardness HRC62, surface plated by chrome treatment.
● Vertical rollers installation design for convenient feeding and pressing for strip material.
● Heating temperature max up to 120℃, digital display by thermostat.
● Safety protection cover is designed to prevent hand injured from high temperature.
● Slotting design for the metal frame is good for heat radiation.
● Pressing thickness can be adjusted.
● Rolling speed can be adjusted by speed controller.
● Electric rolling makes uniform pressing force.
● Forward & backward are available.
Technical Parameters
Model |
STC-DRG-100 |
Working voltage |
AC110/220V optional up request |
Roller |
Dia.100 x W100mm (other width can be optional ) |
Roller hardness |
>HRC62 |
Pressing thickness |
0~2mm adjustable |
Feeding speed |
Max 10mm/s adjustable |
Heating temperature |
Room temperature to 120℃ adjustable, digital display |
Power |
720W |
Dimension |
L390 * W250 * H356mm |
Weight |
60kg |
Warranty
1 year's warranty with lifetime support.
FAQ
1. Are you a manufacturer ?
A: Yes, our factory is located in Shenzhen, China,
We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R&D department.
2. Do you accept customized product ?
A : Yes. Most of our products can be customzied to meet different requirements.
3. Will you provide test video before dispatch?
A : Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service ?
A : Yes, we can dispatch professional engineer for on-site installation service.
