330mm Roll To Roll Hydraulic Heated Calendering Machine

Brand Name:	TICO
Model Number:	STC-DYG-300RS
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	15~ 20 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Product Name:

Hydraulic Roll Press Machine

Pressing Pressure:

Customizable

Pressing Speed:

Max 4m/min

Roller Diameter:

φ200mm

Roller Width:

330mm

Installation Size:

L1900 X W1550 X 1100mm

Weight:

996kg

Packaging Details:

Wood Packing

Supply Ability:

10 sets per month

Highlight:

Roll To Roll Battery Calendering Machine

Customizable Battery Calendering Machine

330mm Hydraulic Calendering Machine

Product Description

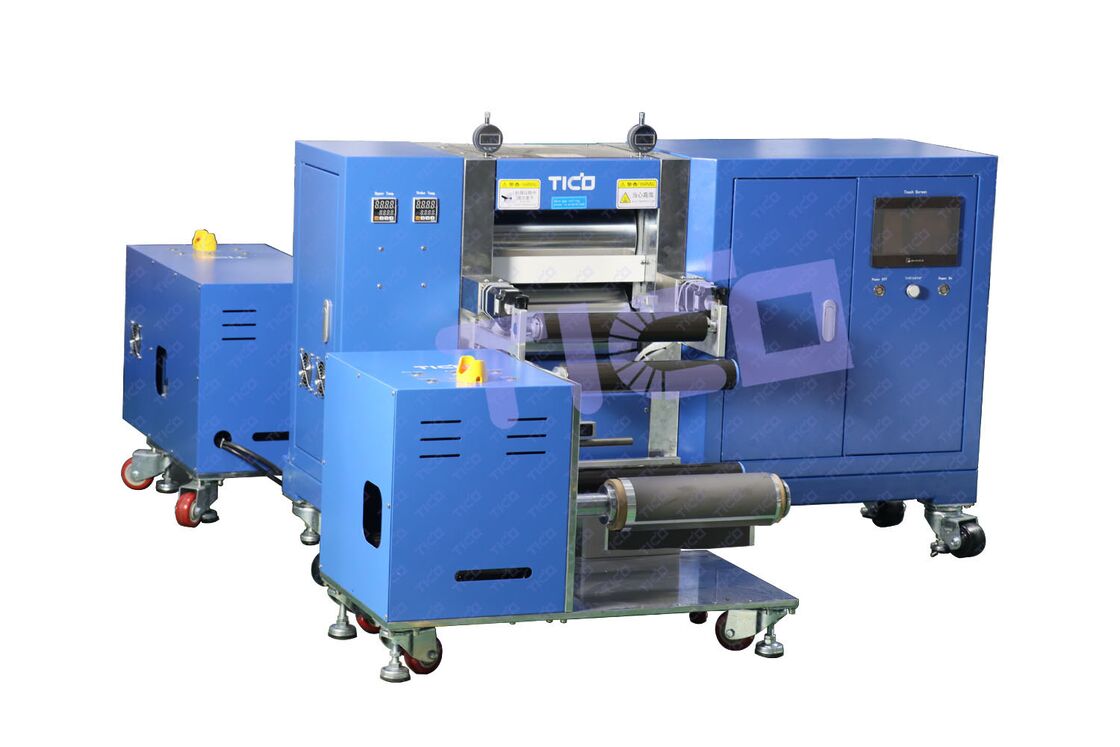

Roll To Roll Hydraulic Heated Calendering Machine

Brief Introduction

This equipment performs high-precision roll pressing of battery cathode and anode electrodes. It is suitable for processes requiring high roll press force and consistent roll press gap. The heating tube placed in the rollers to ensure uniform temperature distribution, the thermostat can precisely control the temperature. The winding and unwinding mechanism enables continuous production, significantly improving the efficiency of electrodes roll press. The machine excels in both horizontal and vertical roll press uniformity, ensuring that high-quality of the roll pressed products. This makes it become an indispensable tool for researchers and manufacturers striving to optimize their battery production processes.

Key Features

● A servo-driven electric oil pump is used to provide pressure, featuring high pressure control precision and stable operation.

● The gap is adjusted via a servo-motor controlled wedge block mechanism, ensuring high precision and ease of operation.

● Equipped with winding and unwinding mechanism for continuous roll pressing of roll substrates.

● Upper and lower rollers have built-in heating tubes, temperature controlled by thermostat and displayed digitally.

● The winding and unwinding mechanisms are equipped with automatic correction devices to ensure that the edges of the roll materials after the roll pressing are neat.

● The machine is equipped with a servo torque motor to ensure the material is tightly wound by the constant tension function.

● Integral gantry frame, CNC precision processing to ensure high accuracy and stability.

● The rollers are treated multiple treatments to ensure high internal and external hardness and excellent abrasion resistance.

● Adopting patented design of hydraulic balanced roll pressing mechanism, stable pressure holding and good uniformity of horizontal and vertical roll pressing.

● Slanted block type roller gap adjusting device, and roller gap is digital display.

● PLC and HMI operation, convenient to set each parameter.

● The surface of the rollers is treated with hard chrome plating, providing excellent rust resistance and easy maintenance.

● Designed with roll pressing force acquisition and storage functions, the machine can monitor and record roll pressing force curves for precise control and analysis.

Technical Parameters

Model	STC-DYG-300RS
Voltage	AC220V±10%, 50Hz
Power	6.5KW
Roll pressing speed	0.3 ~ 4m/min
Roller size	Φ200mm*W330mm
Substrate width	Max 300mm
Roll pressing accuracy	±2μm
Roll pressing gap	0~3mm adjustable,
Gap adjustment accuracy	0.001 mm, displayed on the touchscreen
Dial indicator	Digital dial indicator displays the gap, accuracy 0.001mm
Roll pressing temperature	Upper and lower rollers heating, RT~130℃, digital display
Temperature control accuracy	±2℃
Roller surface roughness	0.2μm
Roller max opening	3mm
Roll pressing motor	1.5KW AC variable frequency motor
Roller material	9Cr3Mo; Surface plated hard chrome thickness ≥ 0.15mm
Roller hardness	Surface hardness: HRC65~70 Hardness layer thickness: ≥15mm The circle run-out is better than +2μm
Roll pressing force	0~50T
Pressure accuracy	±0.5T
Winder and unwinder mechanism	Tension control function, Unwinding and rewinding are equipped with correction function, correct alignment is ±0.5mm
Winder and unwinder roller diameter	250mm
Air inflatable shaft	3 inches
Operating environment	Ambient temperature: 25±3℃ Humidity: 30~90RH, No vibration and electromagnetic interference
Hydraulic oil medium	68# Anti-wear hydraulic oil
Hydraulic cylinders	φ125mm*2pcs, 10mm stroke
Safety protection	Infeed safety guard, emergency stop button
Casters	Equipped with casters for easy moving
Installation space dimension	L1900 * W1550 * H1100mm (include the equipment and winder & unwinder)
Total weight	996kg

Warranty

1 year's warranty with lifetime support.
