Manual Winding Machine for Pouch Cell and Cylindrical Cell Electrode Winding

Name: Manual Winding Machine for Pouch Cell and Cylindrical Cell Electrode Winding
Brand: Shenzhen TICO Technology Co.,Ltd.
SKU: STC-CJR-M30
Price: 4,000.00 USD
Availability: InStock

Brand Name:	TICO
Model Number:	STC-CJR-M30
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	5~8 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Product Name:

Manual Winding Machine

Working Voltage:

AC110V/220V Optional

Winding Speed:

0~170rpm Adjustable

Power:

25W

Dimension:

L550 * W310 * H280mm

Weight:

25Kg

Packaging Details:

Wood Packing

Supply Ability:

40 sets per month

Highlight:

Electrode Manual Winding Machine

40W Manual Winding Machine

Lab Pouch Cell Winding Machine

Product Description

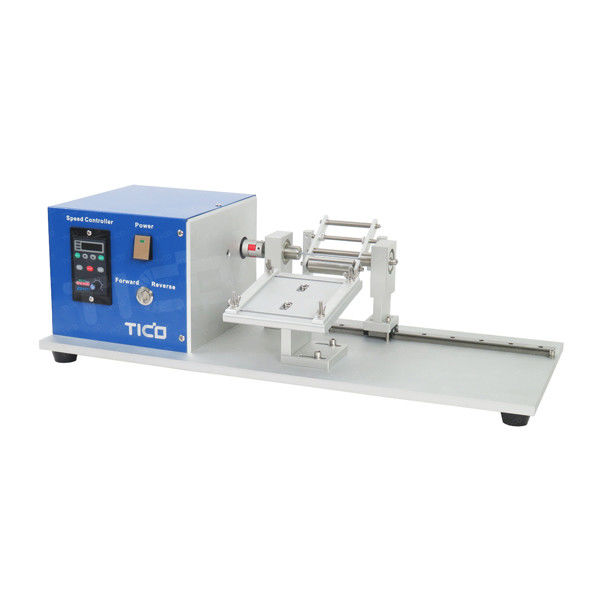

Manual Winding Machine for Pouch Cell and Cylindrical Cell Electrode Winding

Brief Introduction

STC-CJR-M30 is a compact desktop manual winding machine for winding pouch cell electrode & separator to make a battery cell core. With optional cylindrical cell winding die, it can be used for cylindrical cell winding. The compact body makes it be a ideal device for cylindrical cell research in lab.

Features

● Winding speed is adjustable.

● Bracket is designed to ensure the winding tightness.

● Forward & backward winding both available.

● Cylindrical cell winding die is optional.

Technical Parameters

Model	STC-CJR-M30
Voltage	AC220V±10%, 50Hz
Power	25W
Applicable pouch cell size	L (20 ~ 100) * W (20 ~ 80) * T (Max30) mm Customized size is available
Applicable cylindrical cell size	Within φ35mm * L90mm (The cylindrical cell winding die and the pouch cell winding die can be optional and replaceable)
Winding speed	0~170rpm adjustable
Winding pin	φ3mm as standard
Dimension	L550mm * W310mm * H280mm
Weight	25kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
