Product Details:
|
| Product Name: | Vacuum Film Coating Machine | Power Supply: | AC110V/220V Optional Upon Request |
|---|---|---|---|
| Coating Stroke: | Max 800mm Adjustable, Customizable | Coating Thickness: | 0.01~3.5mm Adjustable |
| Heating Temperature: | Up To 150℃ Adjustable | Coating Speed: | 0~200mm/s Adjustable |
| Dimension: | 900 * W310 * H330mm | Weight: | 100kg |
| High Light: | 800mm Vacuum Film Coating Machine,AC110V Vacuum Film Coating Machine,adjustable Film Coating Machine |
||

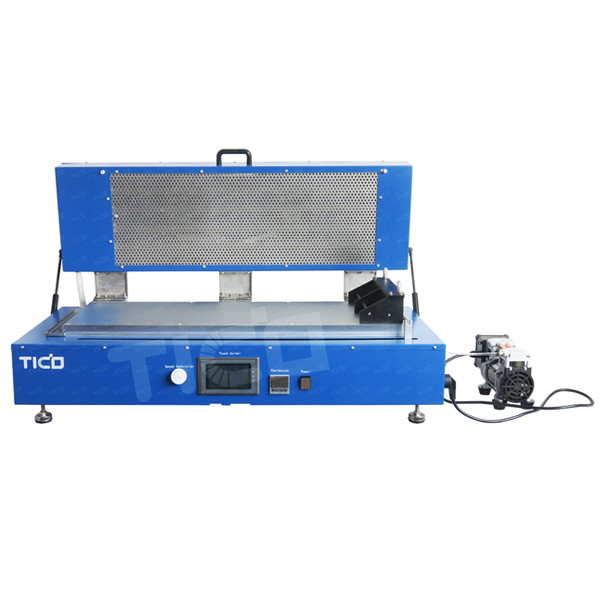

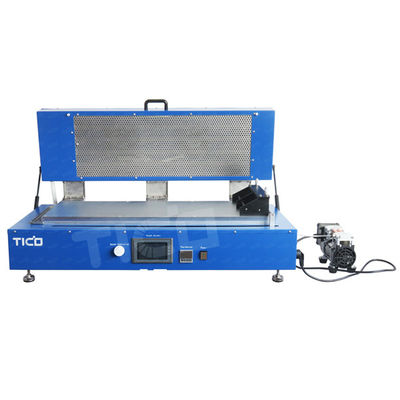

800mm Vacuum Film Caster with Top Heater for Lithium Battery Research
Brief Introduction
STC-TM800 is a large desktop film tape casting machine with vacuum chuck, which widely used in all kinds film coating research, like ceramic films, crystal films, lithium battery electrode coating, etc. It is designed with top cover heating, the heating temperature up to 150℃ adjustable and digital display. The coating speed, coating stroke length, coating thickness adjustable. 800mm coating length makes it perfect for cylindrical cell electrode coating.
Features
● Touch screen operation, high automation.
● Vacuum aluminium chuck is designed for quick suction of substrate.
● Coating stroke length is adjustable.
● Coating speed can be set.
● 800mm coating length, perfect for cylindrical cell coating.
Technical Parameter
| Model | STC-TMH800 |
| Power supply | AC110V/220V optional upon request |
| Max coating stroke length | 800mm adjustable (customized size is available ) |
| Doctor blade | 150mm fixed with & adjustable width optional |
| Coating thickness range | 0.01~3.5mm adjustable |
| Heating temperature | Up to 150℃ adjustable, digital display |
| Vacuum chuck | L865 * W200 * H30mm |
| Vacuum pump | External connected |
| Coating speed | 0~200mm/s adjustable |
| Dimension | L900 * W310 * H330mm |
| Weight | 100kg |
Warranty
1 year's warranty with lifetime technical support.
FAQ
1. Are you a manufacturer ?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R&D department.
2. Do you accept customized product ?
A : Yes. Most of our products can be customzied to meet different requirements.
3. Will you provide test video before dispatch ?
A : Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service ?
A : Yes, we can dispatch professional engineer for on-site installation service.
