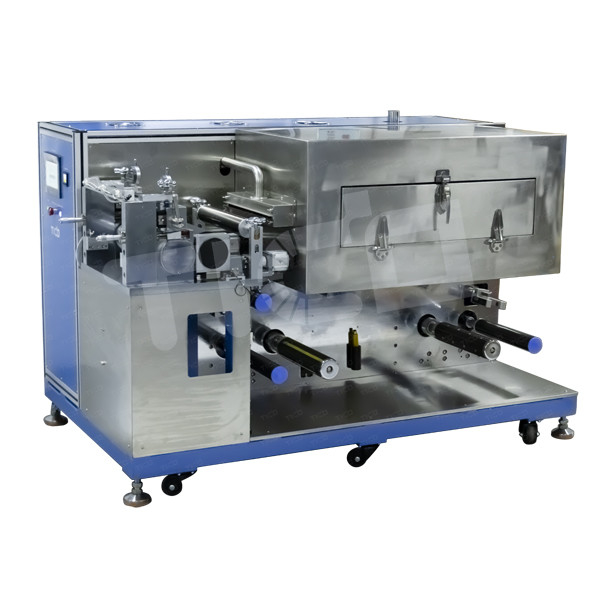

Supercapacitor Electrode Roll To Roll Coating Machine 330mm

Supercapacitor Electrode Roll To Roll Coating Machine 330mm
Supercapacitor Electrode Roll To Roll Coating Machine 330mm

Large Image :  Supercapacitor Electrode Roll To Roll Coating Machine 330mm

Product Details:
Place of Origin: Shenzhen, China
Brand Name: TICO
Model Number: STC-SY300J
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wood Packing
Delivery Time: 30~35 working days
Payment Terms: T/T
Supply Ability: 10 sets per month

Supercapacitor Electrode Roll To Roll Coating Machine 330mm

Product Name: Roll To Roll Coating Machine Coating Method: 3 Rollers Transfer Coating
Coating Mode: Continuous & Intermittent Coating Roller Width: 330mm, 280mm Effective
Substrate Thickness: Aluminium Foil : 8~30μmCopper Foil : 8~30μm Coating Speed: 0~0.5m/min,depending On The Heating
Dimension: L1800*W1300*H1200mm Weight: 700Kg
High Light:

330mm Roll To Roll Coating Machine


Electrode Roll To Roll Coating Machine


Supercapacitor Coating Machine

Roll to Roll Coating Machine for Supercapactior Electrode Coating


Brief Introduction


STC-SY300J coating machine is a three roller transfer coating equipment, which can be used continuous coating and intermittent coating. It is convenient to apply for surface coating for various substrates. Especially used in the lithium ion battery industry, the equipment is designed in accordance with the convenience of the researchers and meets the requirements of coating precision and consistency,it has excellent drying effect. It is the ideal choice for lithium ion battery, super capacitor, nickel battery and other two battery research and development and small test.




● Continuous and intermittent coating can be changed freely.

● Tension control, it’s equipped with correction device.

● Lower & upper blowing heating oven with excellent drying.

● Comma coating blade metering, with precision adjustment mechanism to obtain high coating accuracy.

● Gap tracking system for double side coating.

● PLC control , high automation.

● Solvent recovery processing device is optional.Please click below link for NPM processing system .


Technical Parameters


 Model  STC-SY300J
 Coating method  3 rollers transfer coating
 Coating mode  Continuous & intermittent coating
 Roller width  330mm
 Effective coating width  280mm
 Substrate thickness

 Aluminium foil: 8~30μm

 Copper foil: 8~30μm

 Coating speed  0~0.5m/min, depending on the heating
 Single side coating thickness after drying  20-200μm
 Heating temperature  RT~150℃
 Heating oven  1m length, customized length is available
 Coating size accuracy  L≤±1mm, W≤±0.5mm
 Voltage  3PH 380V 50Hz
 Total power  10KW
 Compressed air  0.5~0.7Mpa
 Dimension  L1800*W1300*H1200mm
 Weight  700kg




1 year's warranty with lifetime support .




1. Are you a manufacturer ?


A: Yes, our factory is located in Shenzhen, China. We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R& D department .


2. Do you accept customized product ?

A : Yes. Most of our products can be customzied to meet different requirements.


3. Will you provide test video before dispatch ?

A : Yes, we take test video for every equipment before dispatch, which will display how to use it.


4. Can you offer overseas installation service ?

A : Yes, we can dispatch professional engineer for on-site installation service.
