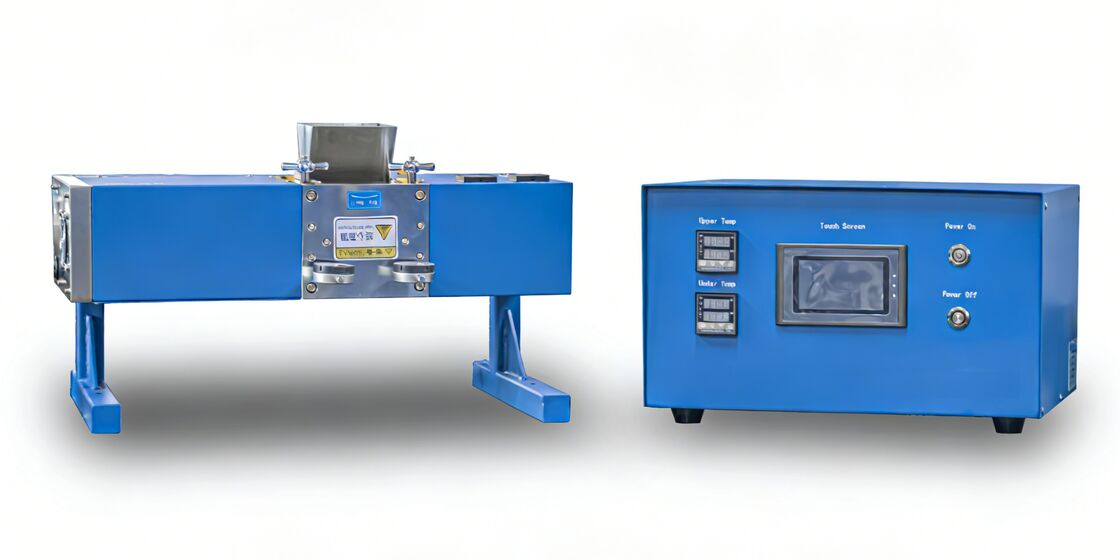

Dual Servo Differential Heated Horizontal Calendar Machine for Dry Electrode Technology

Dual Servo Differential Heated Horizontal Calendar Machine for Dry Electrode Technology

Brief Introduction

This equipment is primarily designed for the electric rolling of battery materials and other non-ferrous materials at controlled heated temperatures. It features adjustable rolling thickness and is simple to operate. It is particularly suitable for thinning and increasing the density of clean energy materials like lithium battery electrodes. The dual servo control system ensures high precision and allows for asynchronous rotation of the rollers.

Key Features

● Dual servo control system with high precision and asynchronous rotation capability. A dual scraper device is installed at the bottom of the roller.

● Heated calendering period with independent upper and lower temperature controllers, temperature is adjustable with digital display.

● Internal roller heating structure for precise temperature control.

● It can be operated with or without heating.

● High-hardness rollers with hard chrome-plated surface treatment.

● Roll press gap adjustment mechanism with good self-locking performance, high adjustment accuracy, and electronic display.

● High roll press precision, with roller cylindricity ≤ ±2μm.

● Digital display of roll press thickness and speed for precise monitoring and adjustment; refined and aesthetic appearance.

● Electric rolling system with automated operation, forward and reverse rotation available.

● Compact size, easy operation, flexible and efficient use.

● PLC touch screen control for automation and high-precision digital adjustment.

● Equipped with a feeding hopper for convenient powder material loading. The feeding hopper width is adjustable.

Technical Parameter

Warranty

1 year warranty with lifetime for the winding machine.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
