1.5KW Supercapacitor Electrolyte Filling Machine 250ml Adjustable

I'm Online Chat Now

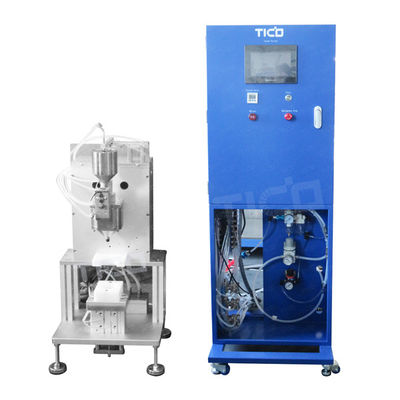

1.5KW Supercapacitor Electrolyte Filling Machine 250ml Adjustable

1.5KW Supercapacitor Electrolyte Filling Machine 250ml Adjustable
1.5KW Supercapacitor Electrolyte Filling Machine 250ml Adjustable

Large Image :  1.5KW Supercapacitor Electrolyte Filling Machine 250ml Adjustable

Product Details:
Place of Origin: Shenzhen, China
Brand Name: TICO
Model Number: STC-SZY60
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wood Packing
Delivery Time: 15~ 20 working days
Payment Terms: T/T
Supply Ability: 10 sets per month

1.5KW Supercapacitor Electrolyte Filling Machine 250ml Adjustable

Product Name: Supercapacitor Electrolyte Filling Machine Applicable Product: φ60mm Supercapacitor
Filling Volume: 0~250ml Adjustable Vacuum: The Vacuum Pressure Is Above -98KPa During Filling (the Vacuum Pump Should Be Prepared By The User).
Power: 1.5KW Voltage: AC220V/50Hz
High Light:

Supercapacitor Electrolyte Filling Machine


250ml adjustable Electrolyte Filling Machine


1.5KW Electrolyte Filling Machine

Supercapacitor Electrolyte Filling Machine


Brief Introduction


It is used for supercapacitor electrolyte filling. Vacuuming filling and pressurization working process is used, which features high consistency, reliability and safety of electrolyte absorption.




● The multi-stage filter and special material adsorption system are used to effectively keep the valves and pipelines unobstructed, protect the vacuum pump from corrosion, damage and blockage, and prevent the failure in starting the pump impeller for vacuuming.

● Electrolyte is rarely exposed in the glove box during the filling, which can greatly reduce the volatilization of electrolyte and corrosion of other components of the glove box.

● Electrolyte solvent (DMC) is used frequency to clean the glove box. Due to the large moisture content, the glove box must be filled with nitrogen to reduce water , which is expensive and time-consuming. Accordingly, the pipeline and filter are used in the easy-to-operate position inside the glove box. The easy-to-dismantle filter is used to discharge the accumulated excess liquid, thus greatly reducing the cleaning times. If the blockage of the joint pipeline cannot be resolved by cleaning with DMC, the pipeline can be dredged by dismantled easily through the access glovebox port.

● The special two-way pneumatic valve is used to avoid blockage, and the internal SUS316 and PTFE materials are highly resistant to corrosion.

● The process of vacuuming, injection and standing under alternating vacuum and pressure features high efficiency and accuracy, and easy and reliable operation.

● The vacuuming time, high vacuum, low vacuum, injection volume, standing time, pressurization time, pressure and pressure relief time can be set.

● The connectors of the injection tank are made of stainless steel, with corrosion-resistant PE hoses. The whole machine is corrosion-resistant, and its body is made of 6 series aluminum alloy.


Technical Parameters


 Applicable product

 φ60mm supercapacitor

 Filling volume

 0~250ml adjustable


 The vacuum pressure is above -98KPa during Filling (the vacuum pump should be prepared by the user)

 Nitrogen (consistent with the working gas of the glove box)







 L400×W400×H860mm (calculated by the maximum height 3000F, H138mm)




1 year warranty with lifetime support.





1. Are you a manufacturer?


A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.


2. Do you accept customized product?

A: Yes, most of our products can be customized to meet different requirements.


3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.


4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
