Product Details:
|
| Product Name: | Roll To Roll Electrode Coating Equipment | Coating Method: | 3 Rollers Transfer Coating |
|---|---|---|---|
| Coating Mode: | Continuous & Intermittent Coating | Roller Width: | 330mm |
| Effective Coating Width: | 280mm | Substrate Thickness: | Aluminium Foil: 8~30μm, Copper Foil: 8~30μm |
| Coating Speed: | 0~0.5m/min, Depending On The Heating | Total Power: | 10KW |
| High Light: | Roll To Roll Battery Coating Machine,330mm Battery Coating Machine,Intermittence Electrode Coating Equipment |
||

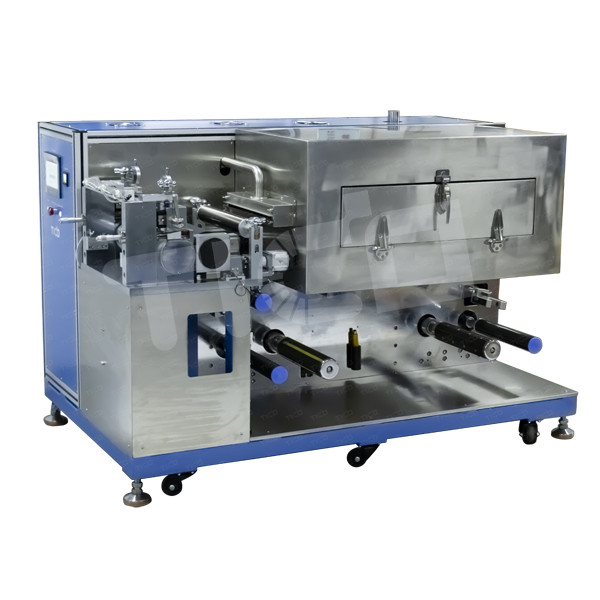

Roll to Roll Intermittence Electrode Coating Equipment for Lab Battery R&D
Brief Introduction
STC-SY300J coating machine is a three roller transfer coating equipment, which can be used continuous coating and intermittent coating, and it is convenient to apply for surface coating for various substrates. Especially used in the lithium ion battery industry, the equipment is designed in accordance with the convenience of the researchers and meets the requirements of coating precision and consistency. It has excellent drying effect. It is the ideal choice for lithium ion battery, super capacitor, nickel battery and other two battery research and development and small test.
Features
● Continuous and intermittent coating can be changed freely.
● Tension control, it’s equipped with correction device.
● Lower & upper blowing heating oven with excellent drying.
● Comma coating blade metering, with precision adjustment mechanism to obtain high coating accuracy.
● Gap tracking system for double side coating.
● PLC control, high automation.
● Solvent recovery processing device is optional.Please click below link for NPM processing system.
Technical Parameters
Brand name | TICO |
Coating method | 3 rollers transfer coating |
Coating mode | Continuous & intermittent coating |
Roller width | 330mm |
Effective coating width | 280mm |
Substrate thickness | Aluminium foil: 8~30μm |
Coating speed | 0~0.5m/min, depending on the heating |
Single side coating thickness after drying | 20-200μm |
| Heating temperature | RT~150℃ |
| Heating oven | 1m length, customized length is available |
| Coating size accuracy | L≤±1mm, W≤±0.5mm |
| Voltage | 3PH AC380V 50Hz |
| Total power | 10KW |
| Compressed air | 0.5~0.7Mpa |
| Dimension | L1800*W1300*H1200mm |
| Weight | 700kg |
Warranty
1 year's warranty with lifetime technical support.
FAQ
1. Are you a manufacture ?
A: Yes,our factory is located in Shenzhen, China.
We have more than 10 years experience for manufacturing battery lab research equipment. We owns a professional R&D department.
2. Do you accept customized product ?
A: Yes. Most of our products can be customized to meet different requirments.
3. Will you provide test video before dispatch ?
A: Yes, we take test video for every equipment before dispatchm which will display how to use it.
4. Can you offer overseas installation service ?
A: Yes, we can dispatch professional engineer for on-site installion service.
