Speed Adjustable Electrode Battery Slitting Machine For Cylindrical Cell 1.1KW

Name: Speed Adjustable Electrode Battery Slitting Machine For Cylindrical Cell 1.1KW
Brand: Shenzhen TICO Technology Co.,Ltd.
SKU: STC-DFT350
Price: 1,500.00 USD
Availability: InStock

Brand Name:	TICO
Model Number:	STC-DFT350
MOQ:	1 set
Price:	Negotiable
Delivery Time:	15~20 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shen Zhen

Application:

For Slitting Cylindric Cell Electrode

Model:

STC-DFT350

Power:

1.1KW

Slitting Width:

30~350mm Available

Slitting Thickness:

80~300μm Battery Electrode

Slitting Speed:

10m/min

Packaging Details:

Standard export wooden packing

Supply Ability:

50 sets per month

Highlight:

350mm Width Battery Slitting Machine

1.1KW Battery Slitting Machine

Cylindrical Cell Electrode Slitting Machine

Product Description

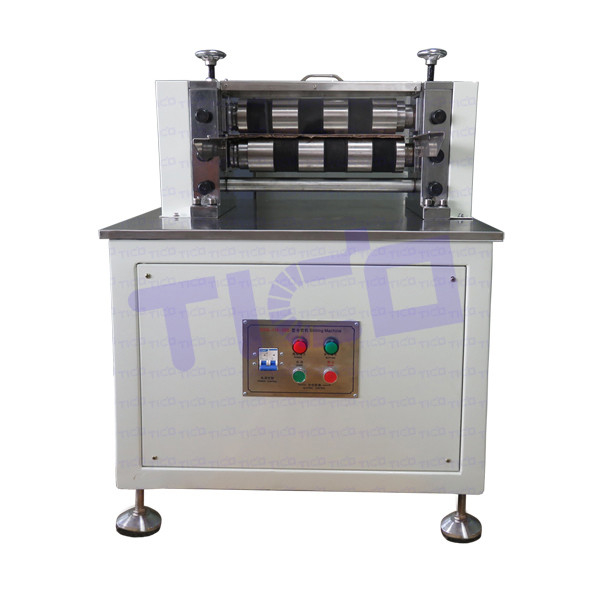

350mm Width Battery Electrode Slitting Machine for Cylindrical Cell

Product Introduction

STC-DFT350 is a semi-auto slitting machine for cylindrical cell electrode for battery research. The slitting width can be made according to requirement. It is widely applied in battery lab research.

Features

● Slitting speed is adjustable, and width is optional

● Protection cover is designed for safety operation.

● The max width of slitting width is 350mm, slitting size can be customized according to requirement.

● Slitting is no burr, no powder drop.

● Simple operation.

Technical Parameter

Brand name	TICO
Model	STC-DFT350
Working voltage	AC110V/220V optional
Power	1.1KW
Slitting width	Slitting width available from 30~350mm.
Slitting accuracy	±0.05mm
Slitting thickness	80~300μm battery electrode
Slitting speed	10m/min.
Dimension	L750 * W620 * H950mm
Weight	230kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
