Product Details:
|
| Product Name: | Battery Tab Welding Machine | Model: | AC110V/220V Optional |
|---|---|---|---|
| Output Power: | 700W | Generator Frequency: | 40KHz |
| Welding Layers: | 20 Layers For Reference | Welding Size: | 3x3 Mm |

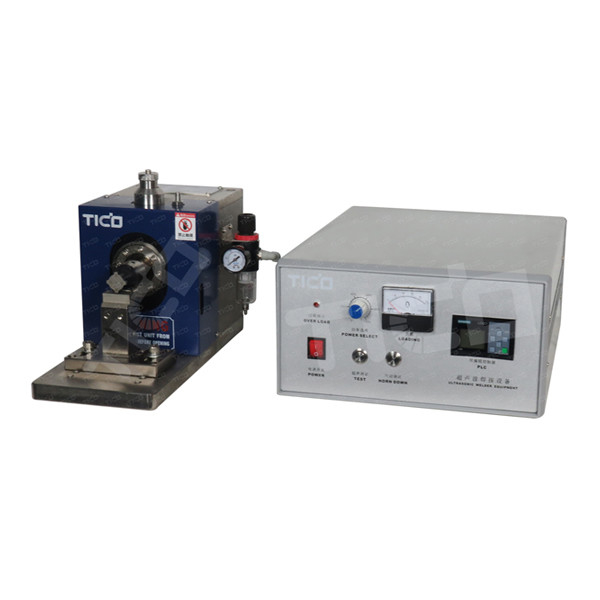

700W Ultrasonic Welding Machine for Battery Tab Welding
Product Introduction
STC-CSH700 mental welding machine is designed for lab battery research. This machine has the advantages of firm welding spot, Low internal resistance of the welding spot, and neat appearance without oxidation traces. It can be applied in various effects by choosing relevant frequencies and powers according to different requirement.
Features
● The conductibility after welding is good and the resistivity is very low, almost 0.
● The welding can be perfectly conducted even if there are some contaminant or oxide exists on the metal surface. Ultrasonic have the function of cleaning.
● The workpiece don't need to pretreatment. The fusion can be completed without solder and soldering paste, more economic, more convenient.
● The welding time is quite short, fusion can be completed within 0.01~2 seconds.
● The welding head is made of wear-resistant material and with great durability.
Technical Details
| Model | STC-CSH700 |
| Voltage | AC110V/220V optional |
| Output power | 700W |
| Generator frequency | 40KHz |
| Welding time | 0.01~2s |
| Welding pressure | 0.5~0.7Mpa |
| Welding layers | 20 layers for reference, depending on different material |
| Welding size | 3x3 mm, customized size is available |
| Dimension | Controller: L520*W410*H180mm, Welder: L400*W240*H325mm |
| Weight | 80kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized accorfing to different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
