Product Details:
|
| Product Name: | Supercapacitor Press Sealer | Applicable Supercapactior Size: | Φ60mm |
|---|---|---|---|
| Pressing To Case Speed: | 30mm/s Adjustable | The Depth To Can: | Adjustable |
| Air Source: | 0.5MPa~0.8MPa | Size: | L400 * W400 * H700mm |
| High Light: | Compact Supercapacitor Equipment,0.8MPa Supercapacitor Equipment,60mm Supercapacitor Sealing Machine |
||

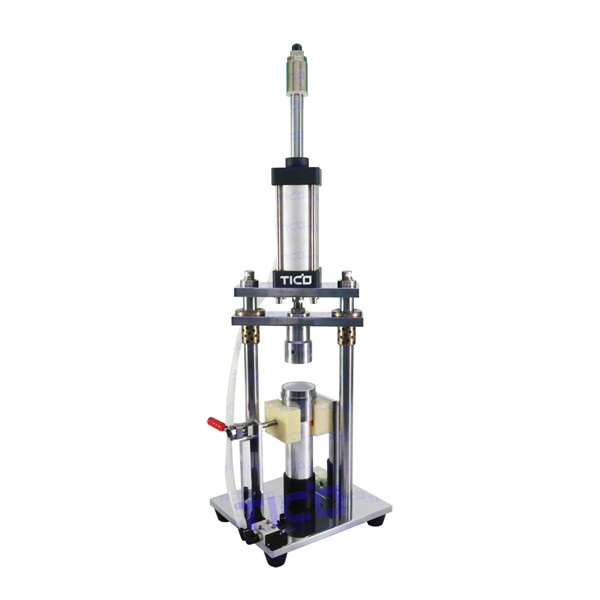

Adjustable Supercapacitor Secondary Press Sealing Machine
BriefPr Introsuction
It is used to press supercapacitors (after the welded cell is assembled with the O-ring of the upper cover) into the case and fasten the O-ring to the inner seal.
Features
• The high-precision guide post and sleeve are used to ensure the stable dimensions in the case.
• The cylinder speed is adjustable.
• The depth to can is adjustable.
• Compact design, ideal for supercapacitor research.
Technical Parameter
| Suitable product | Φ60mm supercapacitor |
| Pressing to case speed | 30mm/s adjustable |
| The depth to can | Adjustable |
| Air source | 0.5MPa~0.8MPa |
| Dimension | L400 * W400 * H700mm |
| Weight | 100kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes. Most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
