Ox-horn Supercapacitor Hole Punching Machine

Brand Name:	TICO
Model Number:	STC-SCK-OX
MOQ:	1 set
Price:	Negotiable
Delivery Time:	5~8 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen

Prodcuct Name:

Ox Horn Manual Hole Puncher

Ox Horn Manual Hole Punching:

Standard Die φ3mm, Accuracy ±0.05mm, Customizable

Hole Punching Position Accuracy:

±0.1mm

Cutting Die Lifetime:

2000000 Times

Dimension:

L150 * W200 * H300mm

Weight:

10kg

Packaging Details:

Standard export wooden packing

Supply Ability:

50 sets per month

Highlight:

Ox Horn Manual Hole Punching Machine

High Accuracy Manual Hole Punching Machine

Die 3mm Manual Hole Punching Machine

Product Description

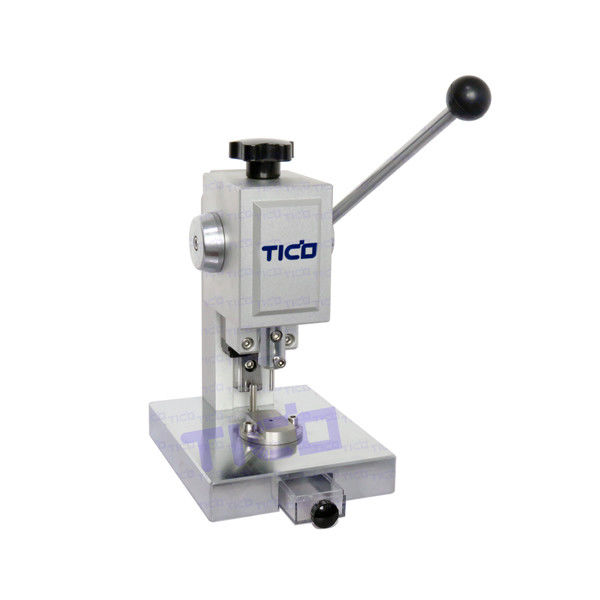

Ox-horn Supercapacitor Hole Punching Machine

Brief Introduction

The machine is used for ox-horn supercapacitor core and pole ear punching. Different size of punching die is optional, easy to replace die.

Key Feartures

● Different size of punching die can be optional.

● Fast to change the cutting die.

● High accuracy, no burrs and dents.

● Upper and lower punching knives are made of high-speed steel, with sharp blades.

● A positioning device is settled to position the placement of the tab.

Technical parameter

Model	STC-SCK-OX
Punching size	Standard die φ3mm, accuracy ±0.05mm, customized size is available
Hole punching position accuracy	±0.1mm
Burr	＜0.2mm
Cutting die lifetime	2000000 times
Dimension	L150 * W200 * H300mm
Weight	10kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
