Product Details:
|
| Application: | Electrolyte Inkection & Standing Mahcine | Operation: | PLC, Touch Screen Controlled |
|---|---|---|---|
| Battery Size: | L20~240mm, W20~200mm, T0~15mm | Filling Accuracy: | ±1% |
| Volume: | 0.2ml*N Fillling | Spitting Speed: | 6ml/s Adjustable |
| High Light: | Pouch Cell Electrolyte Filling Machine,2 In 1 Electrolyte Filling Machine,Electrolyte Standing Pouch Cell Lab Equipment |
||

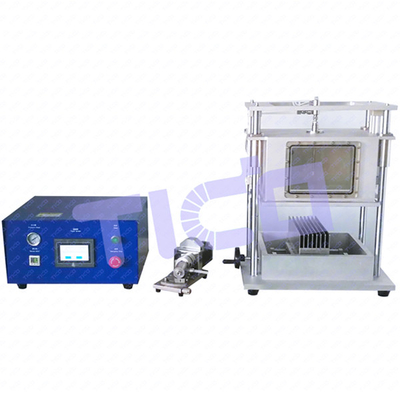

Vacuum Filling & Standing 2 In 1 Machine
Product Details
It is used for electrolyte injection and vacuum standing process for battery. It adopts vacuum first, then liquid injection and vacuum standing. The electrolyte has high precision, absorption consistency and high reliability.
Key Features
• Electrolyte filling & standing 2 in 1 machine.
• It has extremely high measurement accuracy and repeatability.
• Multi-station with high efficiency, accurate precision, convenient and reliable operation.
• The inlet and outlet are connected by chemicial-resisitant hoses.
• Can be operated in glovebox or drying room.
• PLC, touch screen operation, flexiable parameters, high automation program.
Technical Parameters
| Model | STC-JZY200 |
| Working voltage | AC110/220V optional |
| Application | Pouch cell & Cylindrical cell |
| Battery size |
L20~240mm, Tab included, W20~200mm, gas bag included, T0~15mm |
| Working station | 7 |
| Volume | 0.2ml * N filling, adjust according to filling pump |
| Filling accuracy | ±1% |
| Spitting speed | 6ml/s adjustable |
| Pipe diameter | Ф6mm |
| Standing time | Settable, max 9999min |
| Power | 500w |
| Air source | 0.5~0.7MPa |
| Dimension | L510 * W400 * H650mm |
| Weight | 90kg |
| Material | Key part is made of corrosion resistant 304SS, 316SS |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes, most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
