Product Details:
|
| Character: | Equipped With Winding & Unwinding Device | Roller Size: | Ф100 * W100mm |
|---|---|---|---|
| Roller Hardness: | ＞HRC62 | Pressing Thickness: | 0~2mm Adjustable |
| Pressing Speed: | 0~40mm/s Adjustable | Dimension: | L385 * W245 * H355mm |
| High Light: | Battery Electrode Roll Press Machine,100mm Width Roll Press Machine,Roll Press Machine |
||

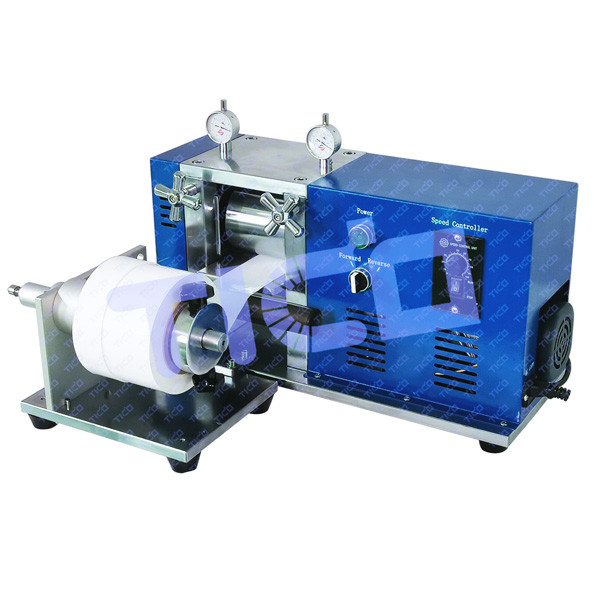

100mm Width Rolling Press Machine with Wind &Unwinding Device
Product Details
STC-DGL100 is a compact electric roll press machine with winding &unwinding device, which can be used for battery electrode pressing. The pressing thickness and speed can be adjusted.
Key Features
• Winding &unwinding device is equipped.
• High roller haraness HRC62, surface plated by chrome treatment.
• Vertical rollers installation designed foir convenient feeding and pressing for strip material.
• Pressing thickness can be adjustable.
• Rolling speed can be adjusted by speed controller.
• Electric rolling makes uniform pressing force.
| Model | STC-DGL100 |
| Voltage | AC110/220V optional |
| Power | 120w |
| Roller dia. | 100mm |
| Roller width | 100mm (other width is optional) |
| Roller hardness | ＞HRC62 |
| Pressing thickness | 0~2mm adjustable |
| Pressing speed | 0~40mm/s adjustable |
| Dimension | L385 * W245 * H355mm |
| Weight | 55kg |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
FAQ
1. Are you a manufacturer?
A: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
A: Yes, most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
A: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
A: Yes, we can dispatch professional engineer for on-site installation service.
