Product Details:
|
| Voltage: | AC220V±10% | Generator Frequency: | 40K Hz |
|---|---|---|---|
| Output Power: | 1000W | Welding Time: | 0.01~2s |
| Welding Pressure: | 0.5~0.7MPa |

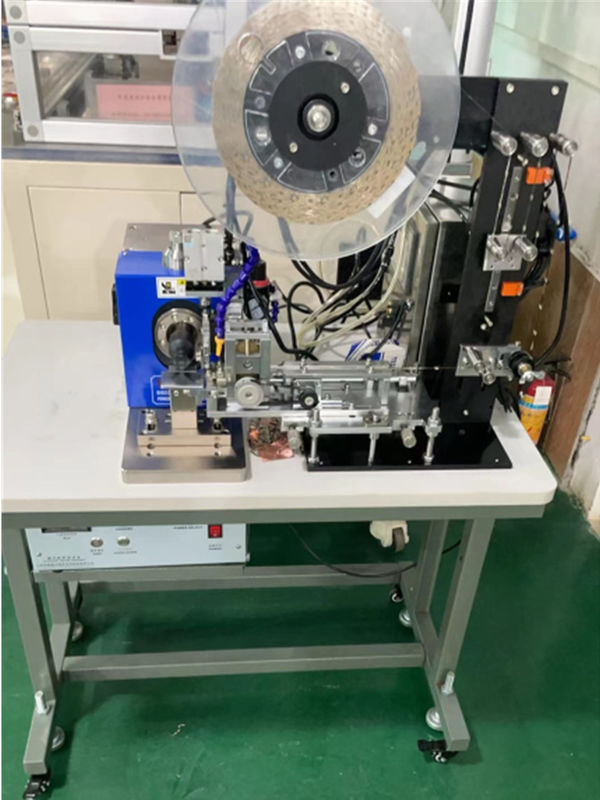

Cylindrical Cell Ultrasonic Welder with Tab Feeding Mechanism
Product Introduction
The machine integrates ultrasonic welding and automatic tab feeding function, enhancing the efficiency and precision of the battery production. The equipment mainly consists of ultrasonic generator, transducer, upper and lower horn, pneumatic parts, frame and so on. The upper and lower horns are made of new alloy materials with good abrasion resistance. The circuit mode of the device is selected as full-bridge high power mode, which provides stable performance and strong output.
Product Specifications
| Model |
STC-CCH-T1000 |
|
Voltage |
AC220V±10% |
|
Output power |
1000W |
|
Generator frequency |
40K Hz |
|
Welding time |
0.01~2s |
|
Welding pressure |
0.5~0.7MPa |
|
Air source |
0.4~0.6MPa |
|
Ambient |
Humidity≤48%, temperature≤45°C |
|
Dimension |
Electric part: L480 * W365 * H202mm Working part: L420 * W180 * H290mm |
|
Weight |
100Kg |
Key Features
SHENZHEN TICO TECHNOLOGY CO., LTD
1. Total solution for Lithium-ion Battery R&D.
2. One-stop service in designing, manufacturing and marketing of battery equipment &material.
3. An integrated company of industry &trade.
FAQ
1. Are you a manufacturer?
TICO: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
TICO: Yes, most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
TICO: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
TICO: Yes, we can dispatch professional engineer for on-site installation service.
