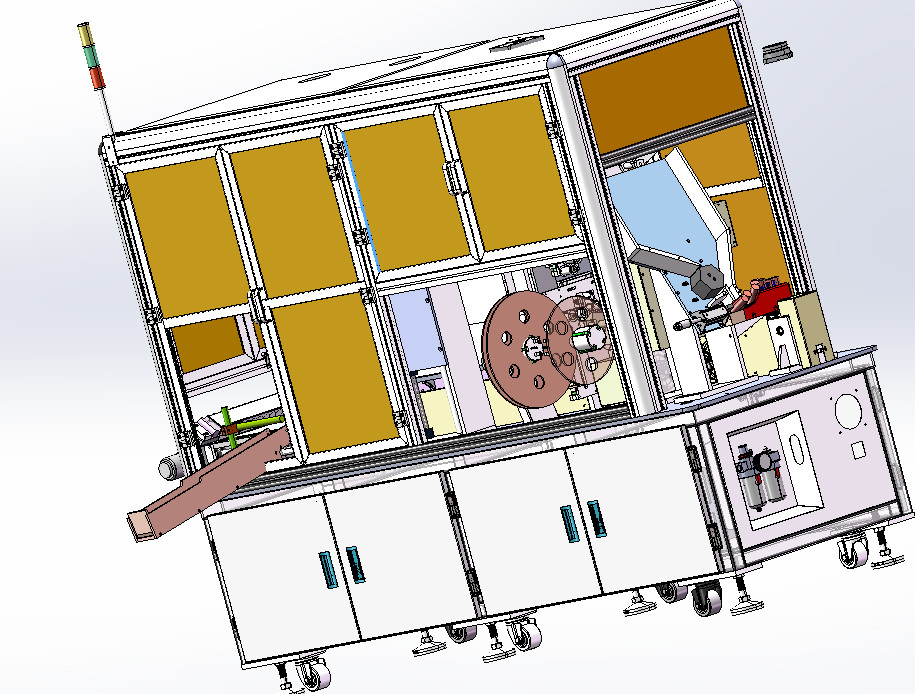

18650 Cylindrical Cell Heat Shrink Auto Packing Machine

18650 Cylindrical Cell Heat Shrink Auto Packing Machine

Brief Introduction

The equipment adopts the whole box automatic feeding mode, which will run automatically after start resetting function. When the battery is in the stopping section of the intermittent movement, the battery is positioned by the cylinder positioning clamp. The heat shrink tube is automatically put on the battery by the servo feeding system, and the insulating sheet is also automatically punched out and put into the heat shrink tube in the stopping section of the intermittent after entering the next station. Then shrunk in the heating shrink furnace and sent out of the battery through the discharge station.

Key Features

● Equipped with automatic feeding device.
● Magnetic rod array suck, manual material collection.
● Machine photoelectric sensor for online detection (to check for the presence of batteries).
● Automatic memory for vacant parts.
● Automatic put on heat shrink tube, automatic punching insulation spacer and put into the battery, automatic heat shrink, automatically count and display.
● The heat shrink tube feeding adopts servo control, it has high feeding accuracy.
● In the 1 meter heat shrink furnace, the fan adopts hot air internal circulation, temperature automatic adjustment, and the temperature difference is small.
● The battery will automatically rotate when it enters the heat shrink furnace to ensure even shrink and good roundness.
● Batteries have a short staying time in the heat shrink furnace, which does not affect the performance of the PTC thermistor.
● Teflon magnetic base can effectively prevent the battery short circuit, transfer battery conveyor belt speed is adjustable and can arbitrarily adjust different speeds.

Technical Parameters

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.


FAQ

1. Are you a manufacturer?

TICO: Yes, our factory is located in Shenzhen, China.

We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

TICO: Yes, most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

TICO: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

TICO: Yes, we can dispatch professional engineer for on-site installation service.
