Product Details:
|
| Voltage: | 3Phase AC380V(220V) ±10%, 50/60Hz | Output Current: | 5000A |
|---|---|---|---|
| No-load Voltage: | 10V | Thickness Of Welded Nickel Sheet: | ≤0.3mm |
| Welding Data Group: | 8 Groups (storage 8 Groups Different Welding Parameters) |

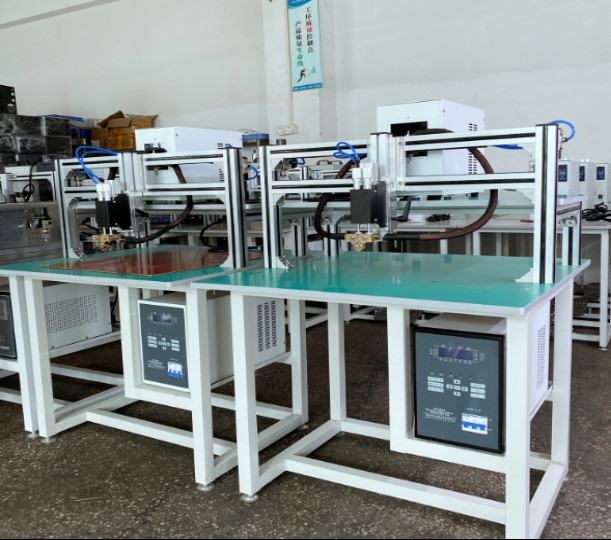

High Frequency DC Spot Welding Machine
Product Introduction
The equipment adopts single pin up and down welding structure, suitable for bottom tab welding of cylindrical cell, hardware accessories welding and so on. Meanwhile, it adopts split design with adjustable welding head height and position. The equipment also adopts high-current inverter DC spot welding power supply, with stable and superior welding performance, suitable for welding thin metal parts with high thermal conductivity and fine workpieces. It adopts gantry double-pin structure, suitable for electric car battery pack, car battery module, balance car battery pack, scooter battery pack, mobile power supply, starter battery pack module, power tool battery pack, laptop battery pack and so on.
Product Specifications
| Model |
STC-CPH-A |
|
Voltage |
3Phase AC380V(220V) ±10%, 50/60Hz |
|
Output current |
5000A |
|
No-load voltage |
10V |
|
Thickness of welded nickel sheet |
≤0.3mm |
|
Welding data group |
8 groups (storage 8 groups different welding parameters) |
|
Welding head height adjustment range |
50-150mm |
|
Battery pack moving platform range |
X direction: 250mm Y direction: 500mm |
|
Air pressure |
0.2～0.7Mpa |
|
Control method |
Constant current control |
|
Cooling method |
Forced air cooling |
|
Mainframe dimension |
L270 * W465mm * H330 |
|
Transformer dimension |
L180 * W330mm * H270 |
|
Working table dimension |
L1000 * W800 * H1300mm |
|
Weight (Mainframe and transformer) |
30.5kg |
|
Working table weight |
40kg |
Key Features
SHENZHEN TICO TECHNOLOGY CO., LTD
1. Total solution for Lithium-ion Battery R&D.
2. One-stop service in designing, manufacturing and marketing of battery equipment &material.
3. An integrated company of industry &trade.
FAQ
1. Are you a manufacturer?
TICO: Yes, our factory is located in Shenzhen, China.
We have more than 10 Year experience for manufacturing battery lab research equipment. We own a professional R&D department.
2. Do you accept customized product?
TICO: Yes, most of our products can be customized to meet different requirements.
3. Will you provide test video before dispatch?
TICO: Yes, we take test video for every equipment before dispatch, which will display how to use it.
4. Can you offer overseas installation service?
TICO: Yes, we can dispatch professional engineer for on-site installation service.
