2L Double Planetary Vacuum Mixer Used in Glovebox

Brand Name:	TICO
Model Number:	STC-EXJ-2LF
MOQ:	1 Set
Price:	Negotiable
Delivery Time:	20~30 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Product Name:

Double Planetary Vacuum Mixer

Voltage:

Single Phase, 220V

Total Power:

3KW

Dispersing Motor Power:

1.5KW

Dimension:

L640 * W450 * H780mm

Weight:

320kg

Packaging Details:

Wood Packing

Product Description

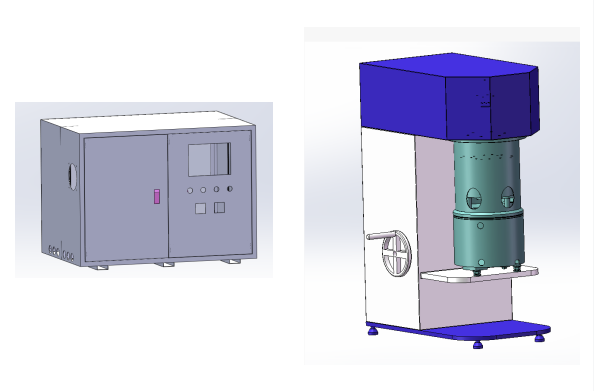

2L Double Planetary Vacuum Mixer Used in Glovebox

Product Introduction

The machine is a highly efficient mixing device that combines vacuum low-speed mixing and high speed dispersion, making it suitable for mixing various solvents and powders.

Key Features

● Planetary mixer featuring a twisted-frame paddle, equipped with high-speed disperser and a wall scraper, ensures no unmixed zones.

● The vacuum environment can effectively eliminate the gas bubbles generated during the mixing, with excellent vacuum retention performance.

● Low-speed stirring achieves macroscopic mixing through combined revolution and self-rotation of the paddle; high-speed disperser achieves microscopic mixing via shear force.

● The machine can perform multi-segment speed operation, rotation speed and time can be set for each segment.

● The effective bucket volume is 2L, and made by high-quality SUS304 stainless steel, resistant to acids and alkalis.

● Equipped with a spotlight, convenient operation and ensures safety during vacuum mixing.

●Jacketed mixing bucket design, can filling the circulating cooling water into the interlayer, suitable for various process requirements.

● PLC controlled with HMI interface enables automated operation with simple and convenient control.

● Compact design, suitable for operation inside a glovebox.

Technical Parameter

Model	STC-EXJ-2LF
Voltage	Single phase, 220V
Total power	3KW
Effective volume	2L
Vacuum level	-0.098 MPa
Maximum revolution speed	70rpm
Dimension	L640 * W450 * H780mm
Weight	320kg

Warranty

1 year warranty with lifetime support. Man-made damage is not covered.

FAQ

1. Are you a manufacturer?

A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.

2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.

3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.

4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
