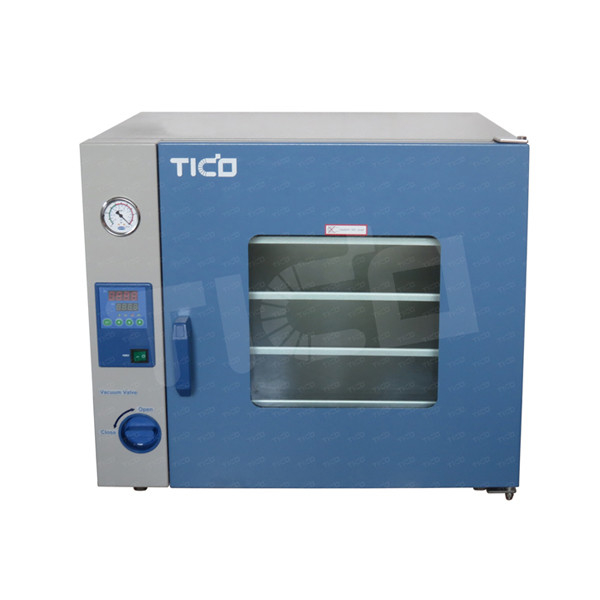

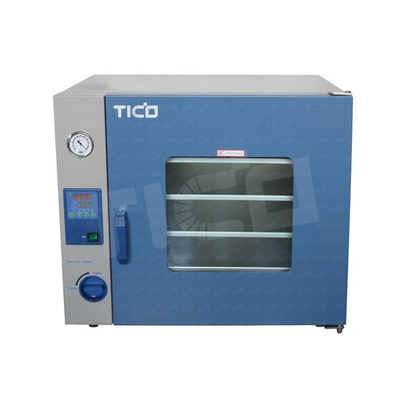

90L Compact Vacuum Drying Oven for Lab Polymer Pouch Battery R&D

90L Compact Vacuum Drying Oven for Lab Polymer Pouch Battery R&D
90L Compact Vacuum Drying Oven for Lab Polymer Pouch Battery R&D

Large Image :  90L Compact Vacuum Drying Oven for Lab Polymer Pouch Battery R&D

Product Details:
Place of Origin: Shenzhen, China
Brand Name: TICO
Model Number: STC-ZKX90
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard export wooden packing
Delivery Time: 10~15 working days
Payment Terms: T/T
Supply Ability: 120 sets per month

90L Compact Vacuum Drying Oven for Lab Polymer Pouch Battery R&D

Description
Product Name: Compacat Vacuum Drying Oven Volume: 90L
Vacuum Degree: 133Pa Input Voltage: 1400W
Heating Temperature: RT+ 10 °C~ 200°C Settable. 250°C Can Be Customized Vacuum Pump: External Connected

90L Compact Vacuum Drying Oven for Lab Polymer Pouch Battery R&D



Brief Introduction



STC-ZKX90 is a compact vacuum drying oven widely used in laboratory. It is applicable for the drying, sterilization and heat treatment for the material under vacuum conditions. Heating time is adjustable, which can maximally reach to 200℃. It is a 90L oven with 3- layer brackets.



Features



● Equipped with inert gas valve to fill gas into the chamber.

● The working chamber is rectangular to achieve the maximum of effective volume.

● Douuble toughened explosion-proof glass esures security, and allows observing the inside material easily.

● 133Pa high vacuum degree.

● Heating temperature is settable.



Technical Parameters



 Model  STC-ZKX90
 Working voltage  AC110V/220V opyional
 Input voltage  1400W
 Heating temperature

 RT+ 10 °C~ 200°C settable. 250°C can be customized

 Constant temperature fluctuation  ± 1°C
 Temperature resolution  0.1°C
 Vacuum degree  133Pa
 Vacuum pump   External connecting
 Dimension  L740 * W610 * H591mm
 Volume  90L
 Weight  138kg





Warranty



1 year warranty with lifetime support. Man-made damage is not covered.



FAQ



1. Are you a manufacturer?



A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.



2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.



3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
