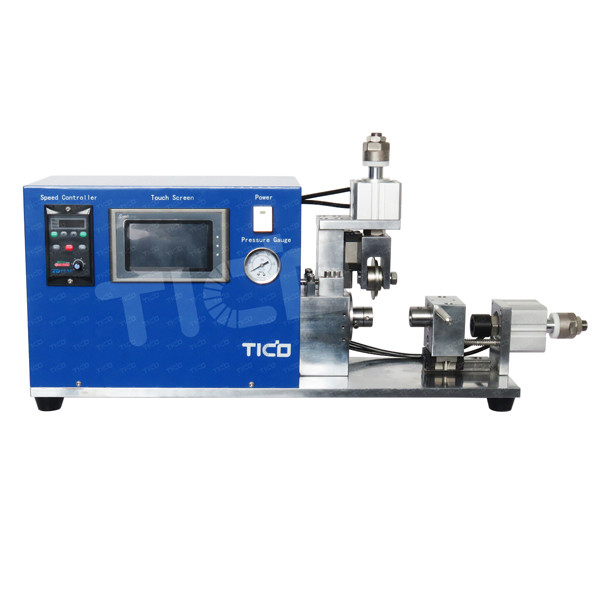

150W Cylindrical Cell Lab Equipment Battery Grooving Machine AC110 220V

I'm Online Chat Now

150W Cylindrical Cell Lab Equipment Battery Grooving Machine AC110 220V

150W Cylindrical Cell Lab Equipment Battery Grooving Machine AC110 220V
150W Cylindrical Cell Lab Equipment Battery Grooving Machine AC110 220V

Large Image :  150W Cylindrical Cell Lab Equipment Battery Grooving Machine AC110 220V

Product Details:
Place of Origin: Shenzhen, China
Brand Name: TICO
Model Number: STC-GC650
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wood Packing
Delivery Time: 20~25 working days
Payment Terms: T/T
Supply Ability: 10 sets per month

150W Cylindrical Cell Lab Equipment Battery Grooving Machine AC110 220V

Description
Product Name: Cylindrical Cell Grooving Machine Working Voltage: AC110/220V Optional
Grooving Die: 18650 Grooving Die As Standard, Others Is Optional Power: 150W
Dimension: L700 * W300 * H320mm Weight: 47Kg
High Light:

150W Cylindrical Cell Lab Equipment

,

220V Cylindrical Cell Lab Equipment

,

Battery Grooving Machine

Cylindrical Cell Grooving Machine for Battery Research



Brief Introduction



STC-ZG650 is TICO TECHNOLOGY's new generation of cylindrical cell grooving machine, it is with touch screen, high automation. With various of grooving die, it can be used for grooving different cylindrical cells, like 18650, 26650, 21700, and other cylindrical cells. It is more compact size and easy operation than last generation of grooving machine, it is a perfect device for cylindrical research, for battery lab or factory trial production.



Features



● Touch screen operation, high automation.

● Different size of grooving die is optional, like 18650, 26650, 21700, etc.

● Scale is provided on grooving machine to facilitate to adjust the grooving depth.

● More simple operation.

● Compact size, light weight, more economical for shipping.



Technical Parameters



 Model

 STC-ZG650

 Working voltage

 AC110/220V optional

 Grooving die

 18650 grooving die for standard, othere size grooving die is optional

 Grooving depth

 1.2~2.0mm adjustable

 Grooving width

 1.1~1.5mm

 Power

 150W

 Grooving die lifetime

 > 100 000 times

 Air source

 0.5MPa ~ 0.7MPa

 Dimension

 L700 * W300 * H320mm

 Weight

 47kg



Warranty



1 year warranty with lifetime support. Man-made damage is not covered.



FAQ



1. Are you a manufacturer?



A: Yes, our factory is located in Shenzhen, China.
We have more than 10 year experience for manufacturing battery lab research equipment. We own a professional R&D department.



2. Do you accept customized product?

A: Yes. Most of our products can be customized to meet different requirements.



3. Will you provide test video before dispatch?

A: Yes, we take test video for every equipment before dispatch, which will display how to use it.



4. Can you offer overseas installation service?

A: Yes, we can dispatch professional engineer for on-site installation service.
