Product Details:
|
| Model: | STC-4008-5V10mA | Input Power: | 25W |
|---|---|---|---|
| Resolution: | AD: 16bit; DA: 16bit | Input Resistance: | ≥1GΩ |
| Dimension: | L483 * W310 * H48mm | Per Unit Main Channels No.: | 8 |
| High Light: | 10mA Coin Cell Testing Machine,16bit Coin Cell Testing Machine,8 Channels Coin Cell Testing Machine |
||

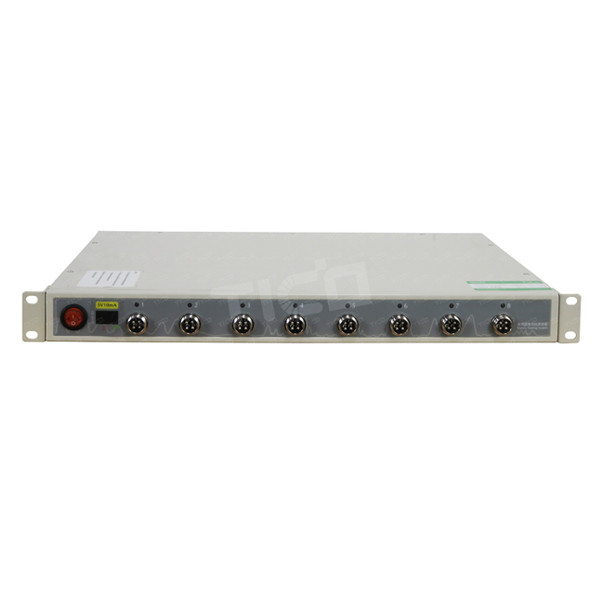

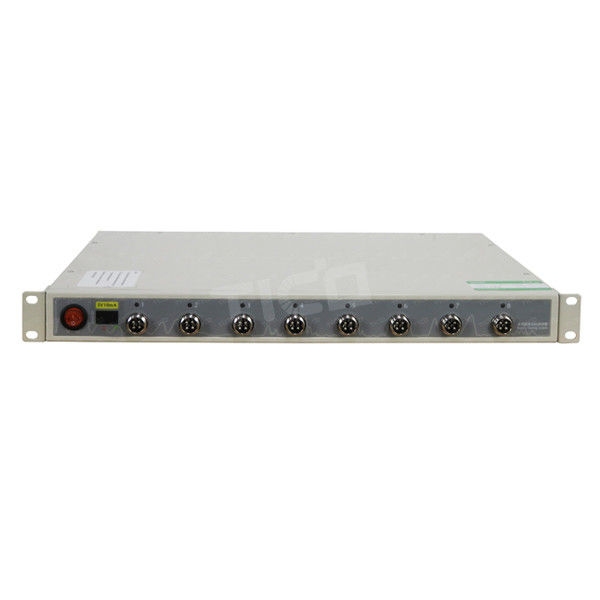

5V10mA 8 Channels Battery Testing Equipment for Lab battery R&D
Product Introduction
CT-4008-5V10mA is a three range output current tester, 5μA~1mA, 1mA~5mA, 5mA~10mA. The accuracy for current and voltage on these channels is ±0.05% FS. It has 8 channels, each channel is working independently. It is perfect for coin cell testing and widely used in university, lab, manufacturer sampling making.
Feature
● Multi ranges.
● Wide application .
● High accuracy, ±0.05% FS.
● Fast response time.
● Each channel is independent.
Technical Parameter
| Brand name | TICO | |
| Input Voltage | AC 220V ±10% / 50Hz | |
| Resolution | AD: 16bit; DA: 16bit | |
| Input Resistance | ≥1GΩ | |
| Input Power | 25W | |
| Channel Features | Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure | |
| Channel Control Mode | Independent Control | |
| Voltage | Per Channel Control Voltage Range | 25mV~5V |
| Minimum discharge voltage | -5V | |
| Accuracy | ± 0.05% of FS | |
| Stability |
± 0.05% of FS
|
|
| Current | Per Channel Current Range |
Range 1: 5μA~1mA , Range 2: 1mA~5mA, Range 3: 5mA~10mA |
| Constant current cut-off current |
Range 1: 2μA； Range 2: 0.01mA , Range 3: 0.02mA |
|
| Accuracy | ± 0.05% of FS | |
| Stability | ± 0.05% of FS | |
| Power | Charge Mode | Constant Current Charge, Constant Voltage Charge, Constant Current and Constant Voltage Charge, Constant Power Charge |
| End Conditon | Voltage, Current, Relative Time, Capacity, -△V | |
| Discharge | Discharge Mode | Voltage, Current, Relative Time, Capacity, -△V |
| End Condition | Voltage, Current, Relative Time, Capacity, -△V | |
| Pulse Test | Charge | Constant Current Charge, Constant Power Charge |
| Discharge | Constant Current Discharge, Constant Power Discharge | |
| Minimum Pulse Width | 500ms | |
| Pulse Number | 32 diffirent pulse for a single step | |
| Charge And Discharge Switch | continuous switched for a single pulse step | |
| End Condition | Voltage, Relative Time | |
| DCIR test supported | ||
| Cycle | Loop Measure Range | 1~65535 times |
| Max Steps Per Loop | 254 | |
| Nested Loop | Nested loop Function, Max Support 3 Layers | |
| Protection | Power-down Data Protection | |
| Off-line Testing Function | ||
|
Setting Protection Condition, Setting Parameter: Low Voltage limit, Upper Voltage limit, Low Current limit, Upper Current limit, Delay Time |
||
| Voltage and Current Testing Sample | 4-wire connecting | |
| Noise | <45dB | |
| Database | MySQL Database | |
| A Means of Communication of Upper Machine | TCP/IP Protocol | |
| Data Output | EXCEL 2003, 2010, TXT | |
| Server disk configuration | 500GB | |
| Communication Interface | Internet Access | |
| Server Operating System | Windows 7 | |
| Leak current | 0.005μA | |
| Per Unit Main Channels No. | 8 | |
| Clamp | Coin cell clamp | |
| Dimension | L483 * W310 * H48mm | |
Warranty
1 year warranty with lifetime support. Man-made damage is not covered.
